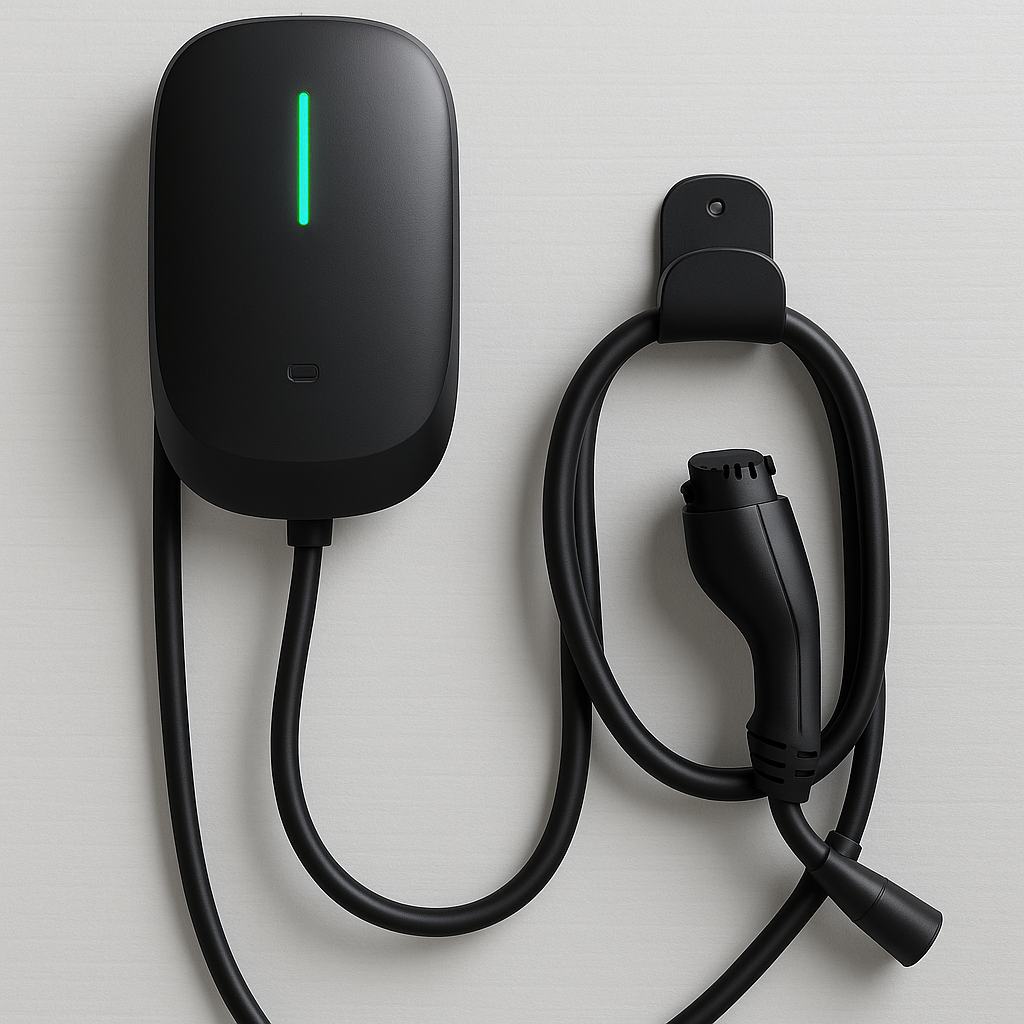

Fe Faith AmpCore™ R22 Smart AC EV Charger – 22kW

Fe Faith AmpCore™ R22 Smart AC EV Charger – 22kW

The Wattsaving R22 22kW Smart AC Charger delivers ultra-fast Level 2 charging for high-demand users. Ideal for homes, businesses, and fleet operations, it combines speed, safety, and smart control. With a sleek design and advanced features, it's built for performance and reliability indoors or out.
Comparable to: Tesla Wall Connector, ChargePoint Commercial (based on high-speed charging and multi-access features).

What It Does

The Fe Faith AmpCore™ R22 Smart AC Charger offers 22kW fast Level 2 charging with three-phase power systems. It provides smart app control for monitoring, scheduling, and managing charging remotely. RFID and face recognition access ensure enhanced security, while dynamic load balancing protects your power supply and prevents overloads. Built with durability in mind, the charger features IP65-rated weatherproofing for reliable performance both indoors and outdoors.

Key Features:

• 22kW High-Speed Charging: Fast Level 2 charging for three-phase power systems, providing rapid charging.

• Smart App Control: Remotely monitor, schedule, and manage charging for convenience.

• RFID & Face Recognition Access: Multi-access options for enhanced security, ensuring authorized use.

• Dynamic Load Balancing: Protects the power supply and prevents system overload for safe operation.

• Weatherproof & Durable: IP65-rated, making it suitable for reliable outdoor use in any condition.

• LED Display Panel: Real-time charging status and alerts for easy monitoring.

Specifications:

• Model: Wattsaving R22

• Output Power: Maximum 22kW

• Input Voltage: 380Vac ± 20%

• Output Voltage: 380Vac ± 20%

• Current: 32A MAX

• Cable Length: 5m

• IP Rated: IP65

• Operating Temperature: -30℃~55℃

• Operating Humidity: 5%~95%

• Connector: 1

• Dimensions (H x W x D): 191 x 394 x 165mm

• Weight: 4.5kg

Compatible With

Designed for residential, business, and fleet use, the Wattsaving R22 is ideal for a wide range of EVs that require high-speed charging.

Comparable To

Tesla Wall Connector, ChargePoint Commercial (based on high-speed charging and multi-access features).

Disclaimer

Ensure proper installation according to the manufacturer’s guidelines. Specifications are subject to change without notice.
