Fe Faith AmpCore™ U20 DC Fast Charger – 20kW

Fe Faith AmpCore™ U20 DC Fast Charger – 20kW

Experience powerful and reliable electric vehicle charging with the FE-FAITH Wattsaving U20 20kW DC Fast EV Charger. Designed for high-efficiency performance, this smart wall-mounted or pedestal-mounted charger supports both single-phase and three-phase power inputs, making it ideal for residential, commercial, or fleet applications. With IP65 protection, RFID activation, and full CE certification, the U20 ensures safe, weather-resistant charging for a wide range of EVs.
Comparable to: ABB Terra 20 kW, Siemens VersiCharge (based on DC fast charging and RFID security).

What It Does

The Fe Faith AmpCore™ U20 DC Fast Charger offers rapid charging at 20kW, ensuring your electric vehicle is ready to go in no time. With both single-phase and three-phase input compatibility, it's designed for versatile use in residential, commercial, and fleet environments. The built-in RFID activation ensures secure and controlled access, while the IP65-rated enclosure provides reliable, all-weather protection. The charger operates efficiently with a ≥94% efficiency rating, making it a high-performance and eco-friendly solution.

Key Features:

• 20kW Fast DC Output: Rapid charging for a wide range of EV models, reducing downtime.

• Dual Input Compatibility: Supports both single-phase and three-phase AC input for flexibility.

• Smart RFID Activation: Secure user access and charging usage control for enhanced security.

• Advanced Safety Protection: Includes overcurrent, surge, temperature, and ground protection for safe operation.

• Durable Outdoor Design: IP65-rated for dust and water resistance, making it perfect for both indoor and outdoor installations.

• High Efficiency: Operates at ≥94% efficiency, minimizing energy waste.

Specifications:

• Model: Wattsaving U20

• Output DC Power: Maximum 20 kW

• Input Voltage: 323~473Vac, 380Vac Type

• Output Voltage: 200~1000Vdc

• Frequency: 45-55Hz

• Current: 67A MAX

• Efficiency: ≥94%

• Charging Mode: RFID Activation

• Cable Length: 5m

• Input Wiring: Hardwired

• Input Cord (three-phase): L1, L2, L3, N (Neutral), and PE (Protective Earth)

• Input Cord (single-phase): L1, N (Neutral), and PE (Protective Earth)

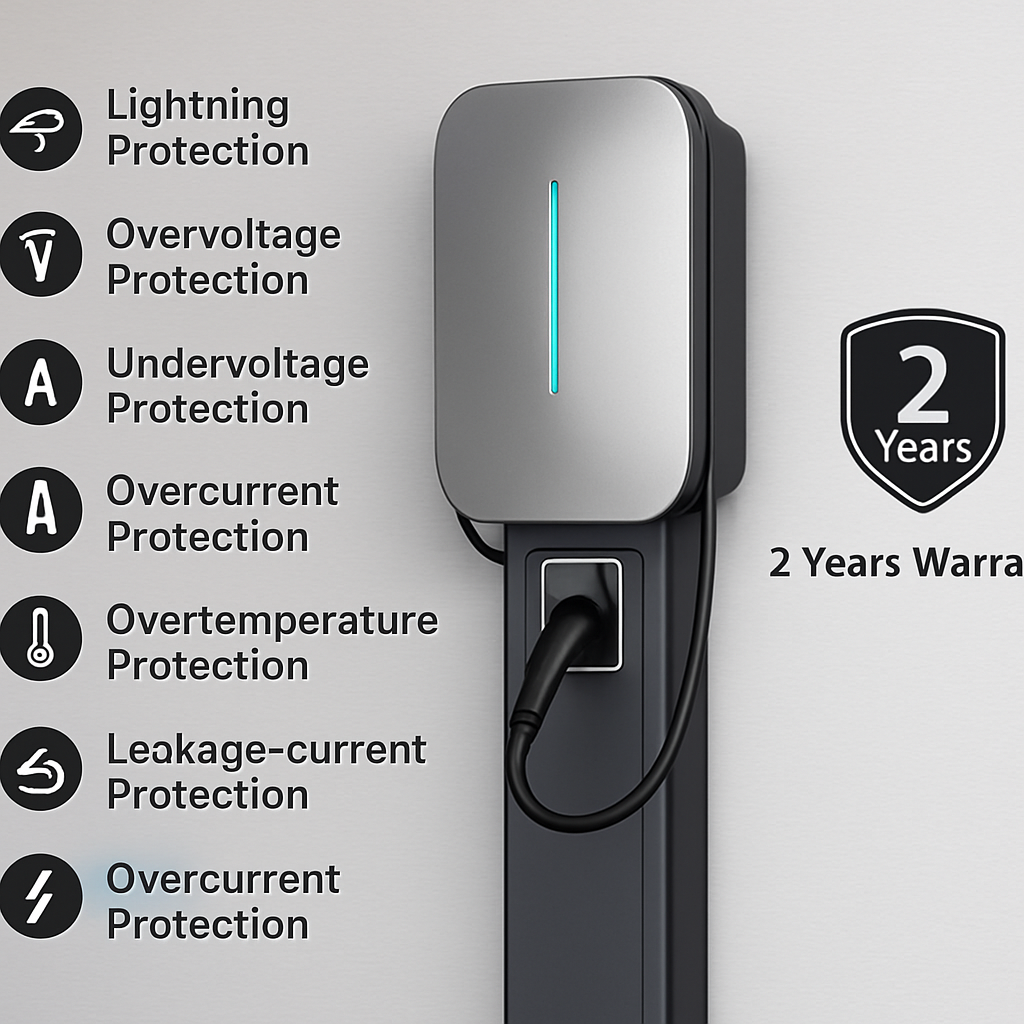

• Protection: Overcurrent protection, Residual current protection, Ground protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection.

• IP Rated: IP65

• Storage Temperature: -40 to 80℃

• Operating Temperature: -40℃~55℃

• Operating Humidity: 5%~95%

• Certification: CE

• Standards:

  • EN/IEC 61851-1:2019

  • EN/IEC 61851-21-2:2021

  • IEC/IEC 62955:201

  • IEC/IEC 62196-2

• Dimensions (H x W x D): 900 x 570 x 500mm

• Net Weight: 47.0kg

• Gross Weight: 48.5kg

• Warranty: 1 Year

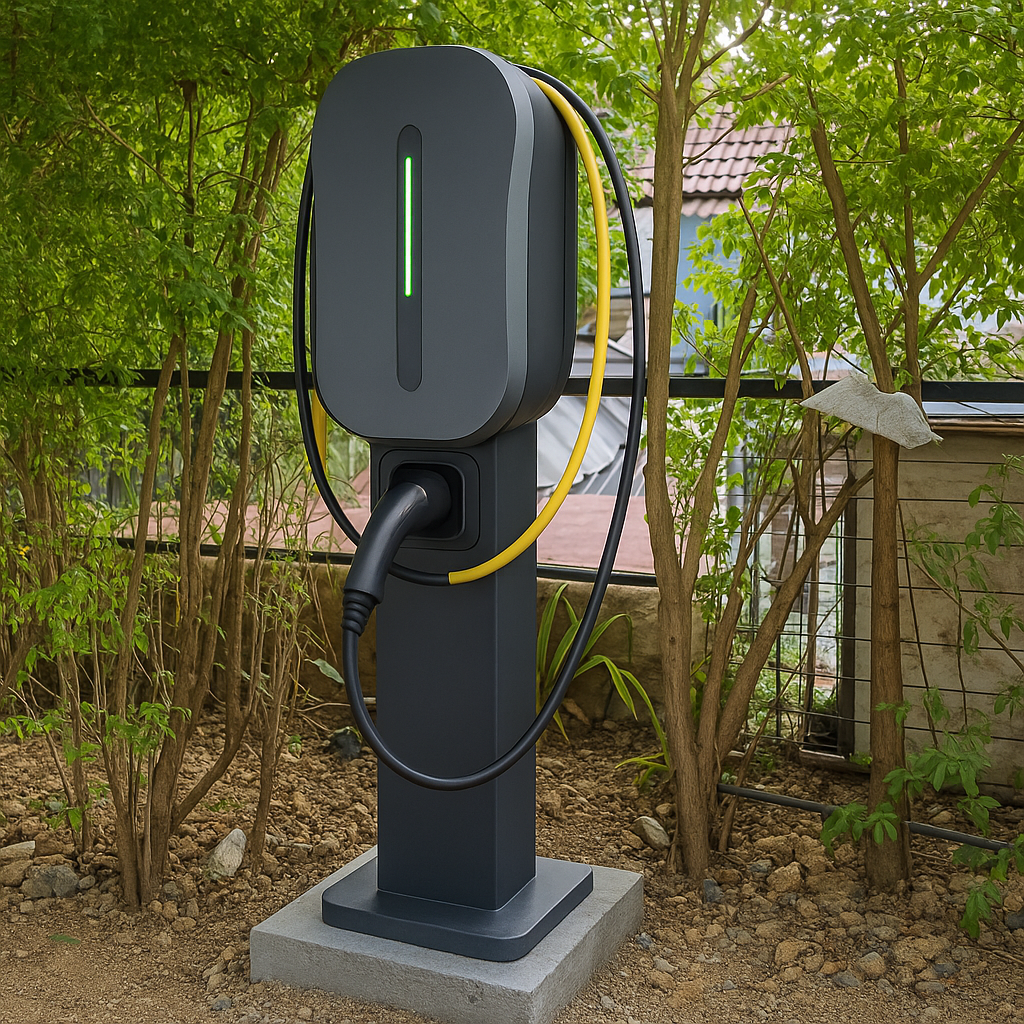

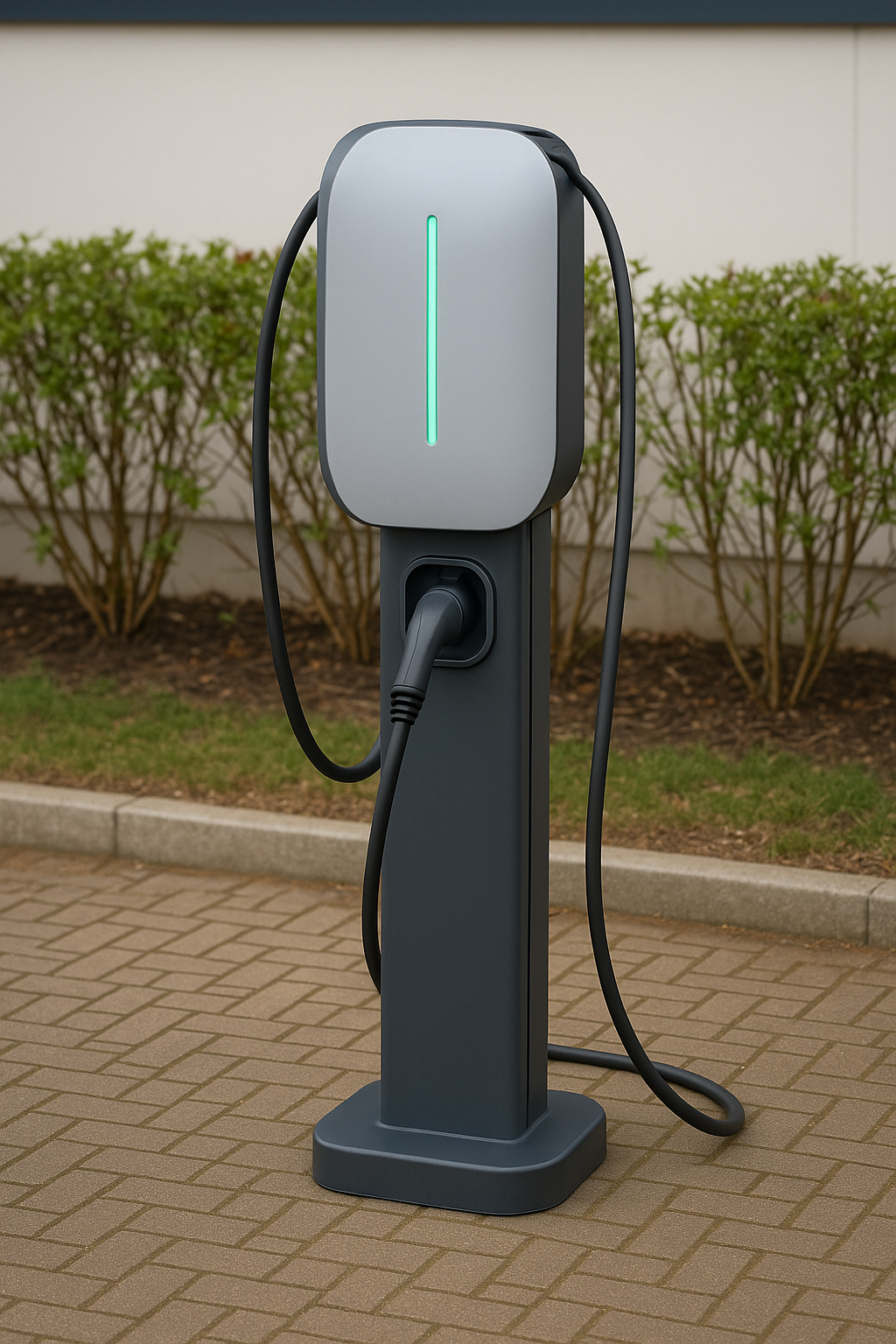

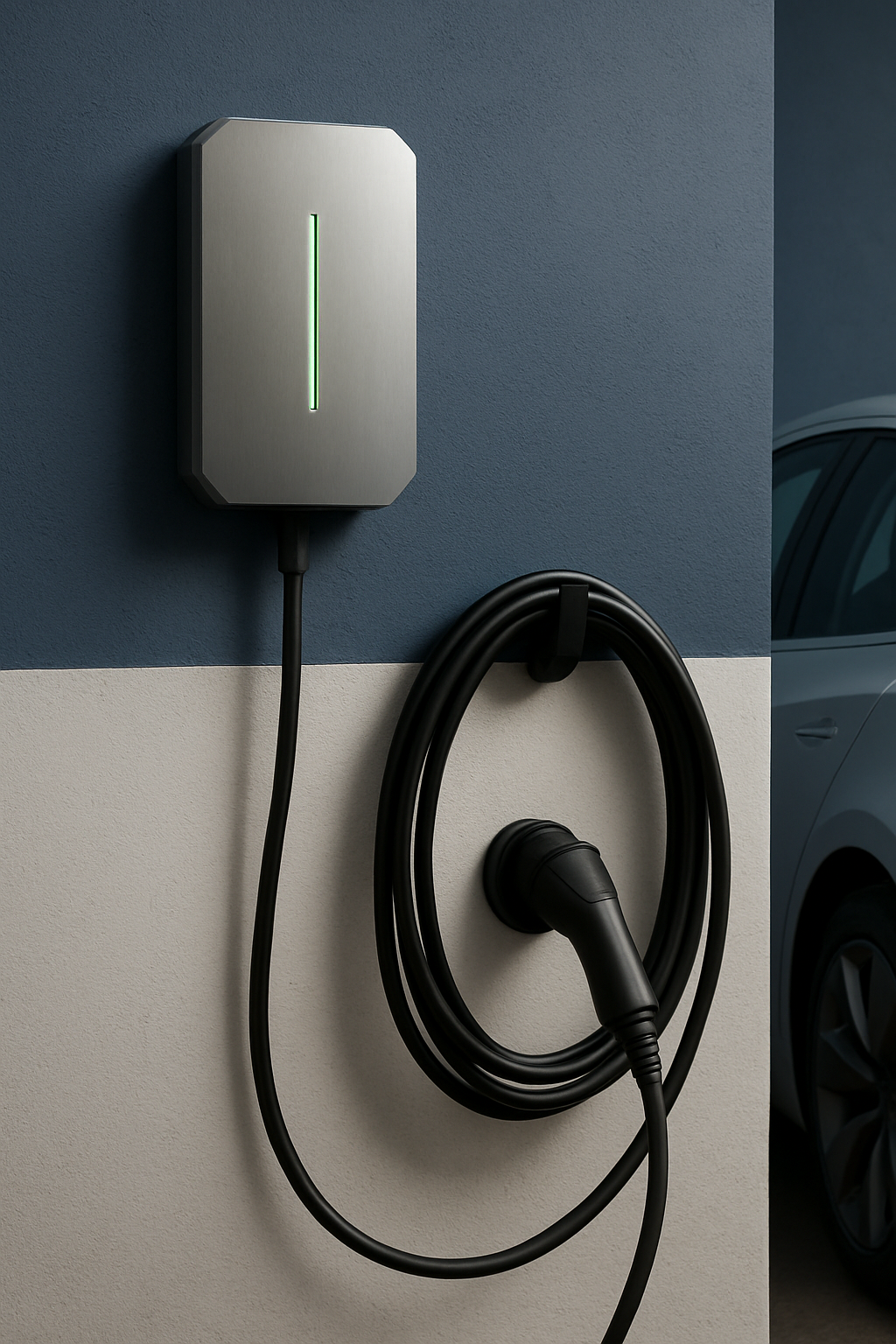

• Installation: Wall mounted / Pedestal mounted

Compatible With

Ideal for residential, commercial, and fleet applications, the Wattsaving U20 is compatible with a wide range of electric vehicle models, ensuring rapid and efficient charging across various EV brands.

Comparable To

ABB Terra 20 kW, Siemens VersiCharge (based on DC fast charging and RFID security).

Disclaimer

Ensure proper installation according to the manufacturer’s guidelines. Specifications are subject to change without notice.
