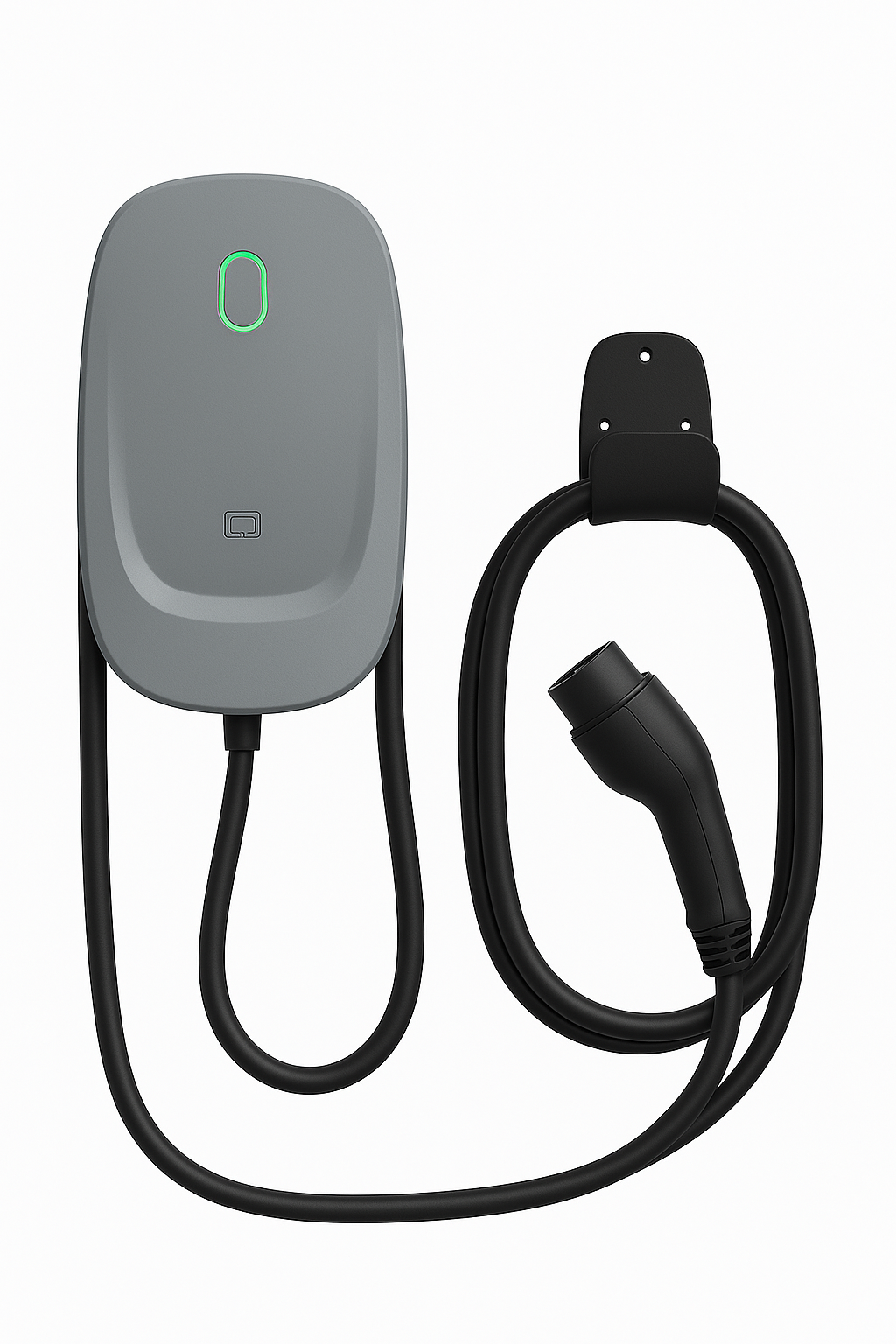

Fe Faith AmpCore™ E22 EV Charger – 22kW Three-Phase

Fe Faith AmpCore™ E22 EV Charger – 22kW Three-Phase

Fast Charging: The Wattsaving E22 EV charger provides fast charging capabilities for electric vehicles in European countries, allowing drivers to quickly charge their car and get back on the road.

Versatility: The Wattsaving EV charger is compatible with a wide range of electric vehicles, including popular models such as Tesla, Volkswagen, BMW, BYD, and more, making it a versatile solution for any EV owner.

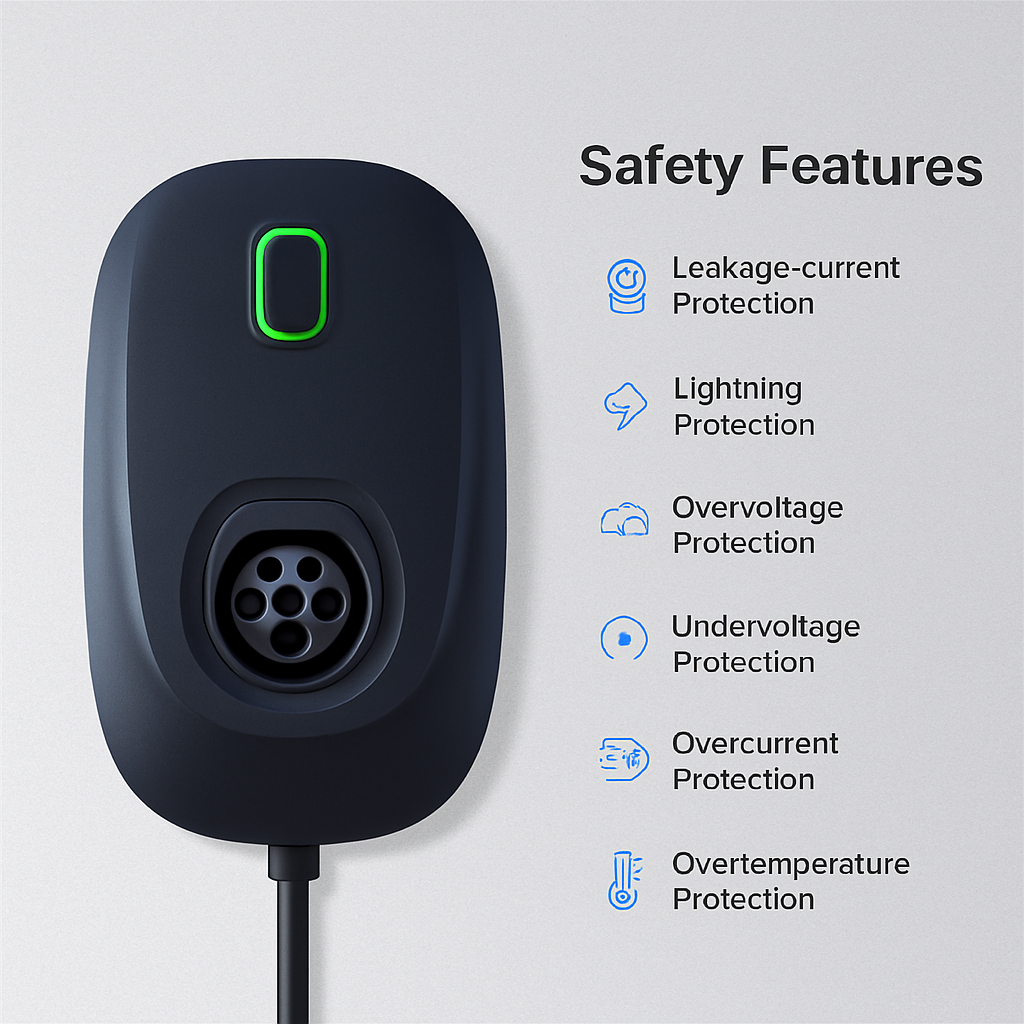

Safety Features: The E22 EV charger is CE certified and equipped with advanced safety features such as overload protection, over-voltage protection, and over-current protection to ensure that the charging process is safe and secure.

Sustainability: The Wattsaving home EV charger is designed with sustainability in mind, featuring energy-efficient components that reduce energy consumption and minimize environmental impact.

Easy Installation: Our 22kW EV charger can be connected to both single-phase and three-phase electricity. You can install it in your house or outside. The package comes with all the necessary mounting hardware, cables, and instructions for easy installation. Please contact a local installer or licensed electrician to install this EV charger. Also, you can find a Wattsaving preferred installer on our website.

Key Features:

• Three-phase 22kW home EV charger: You can charge your EV 3X faster than a single-phase 7kW EV charger.

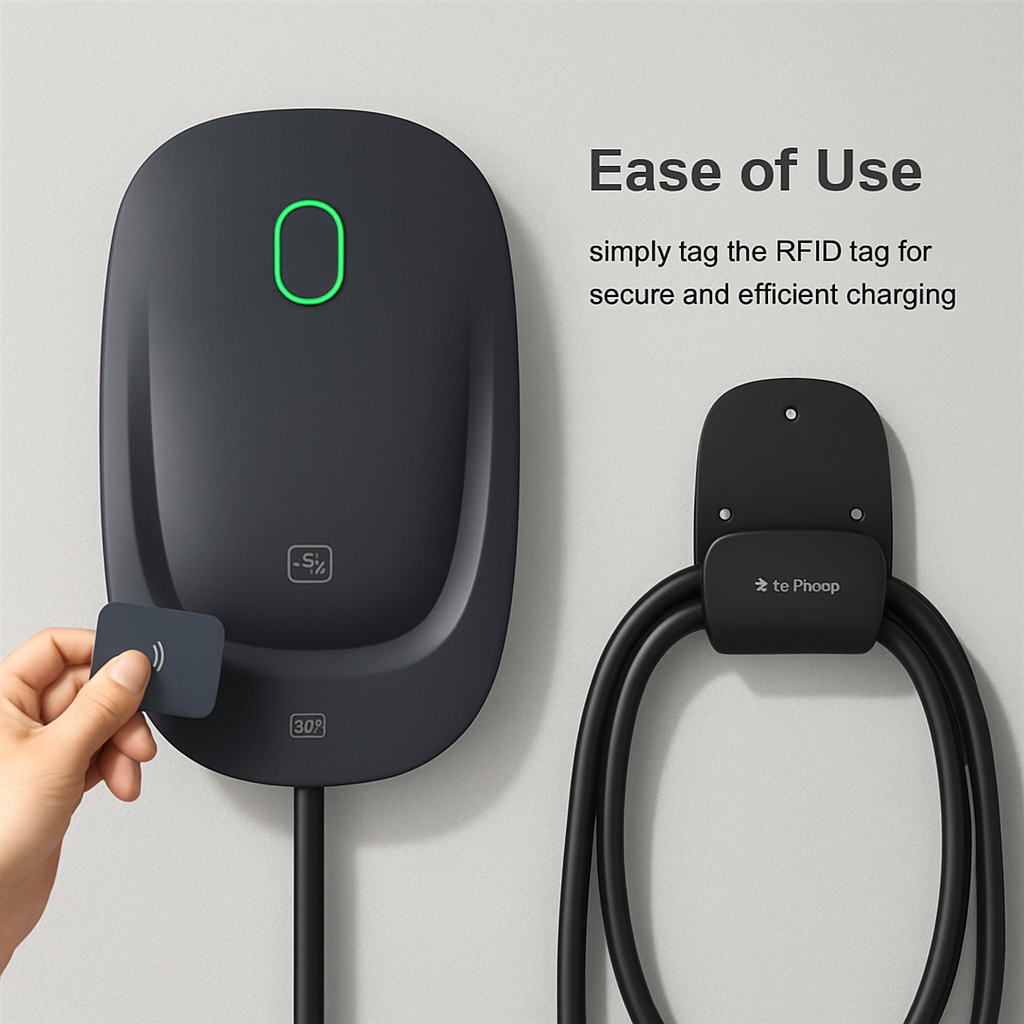

• 2 Charging Modes Available: Plug-and-Charge (default) and RFID card activate to charge.

• Enclosure for dust, water, and impact-proof: Suitable for both indoor and outdoor installation.

• Easy to install and use: Compact design to install inside or outside with a long-reach 5m cable.

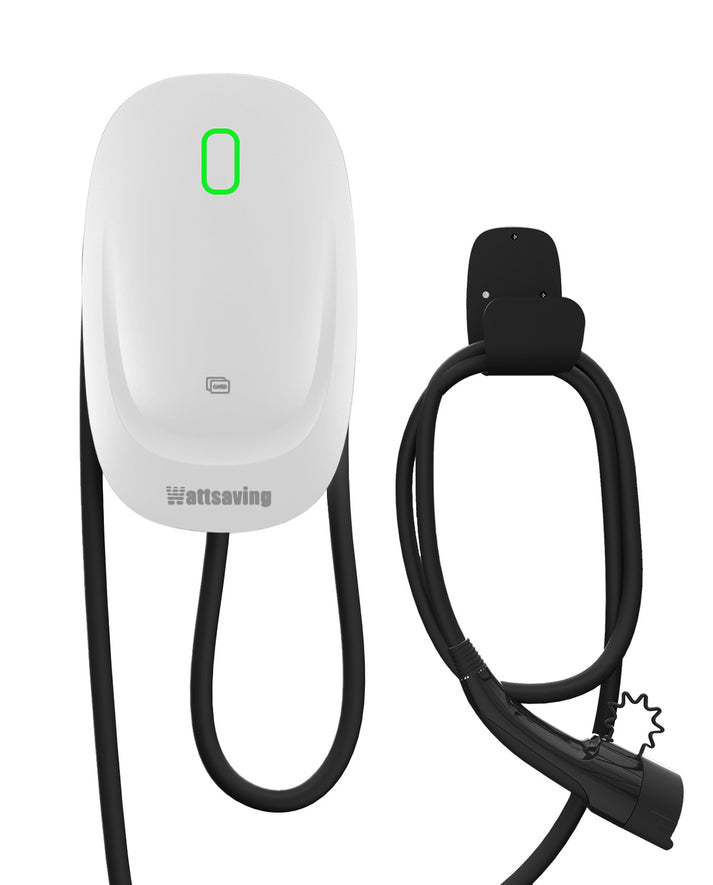

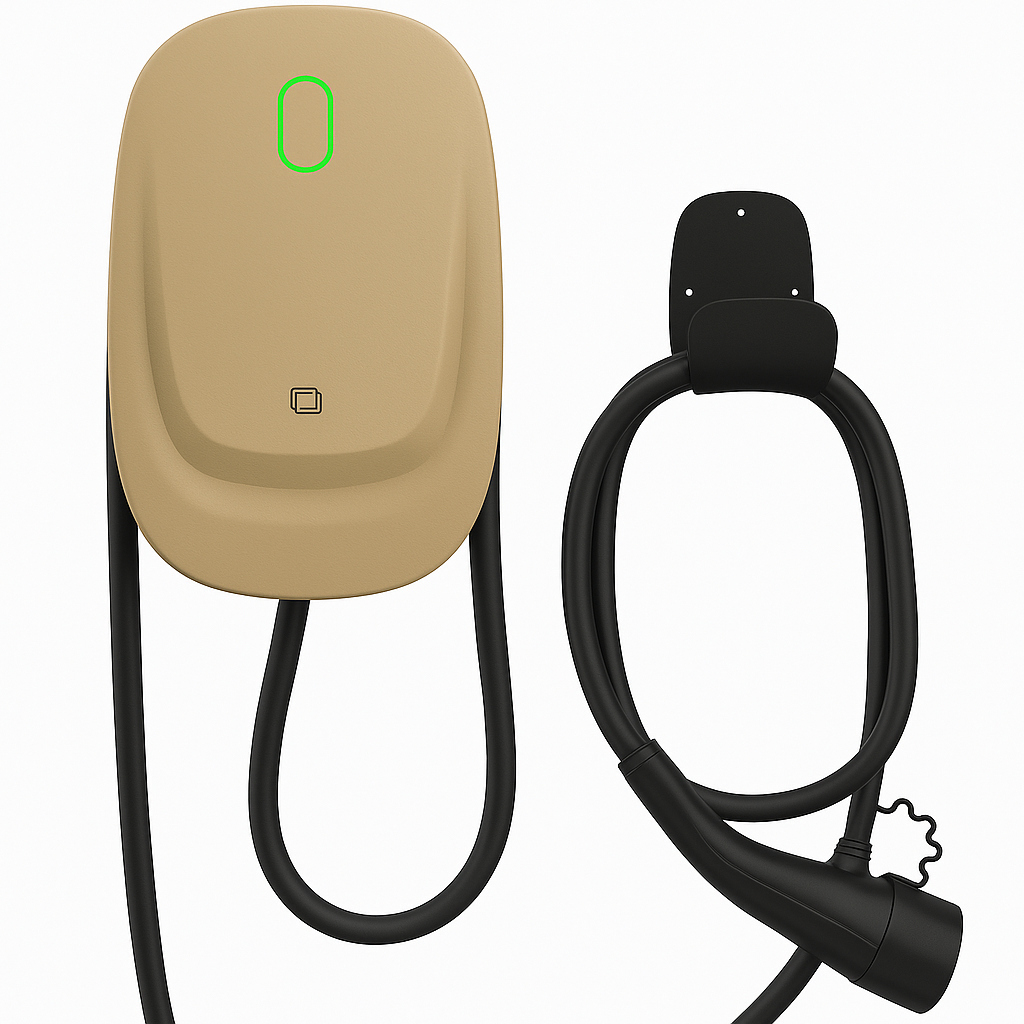

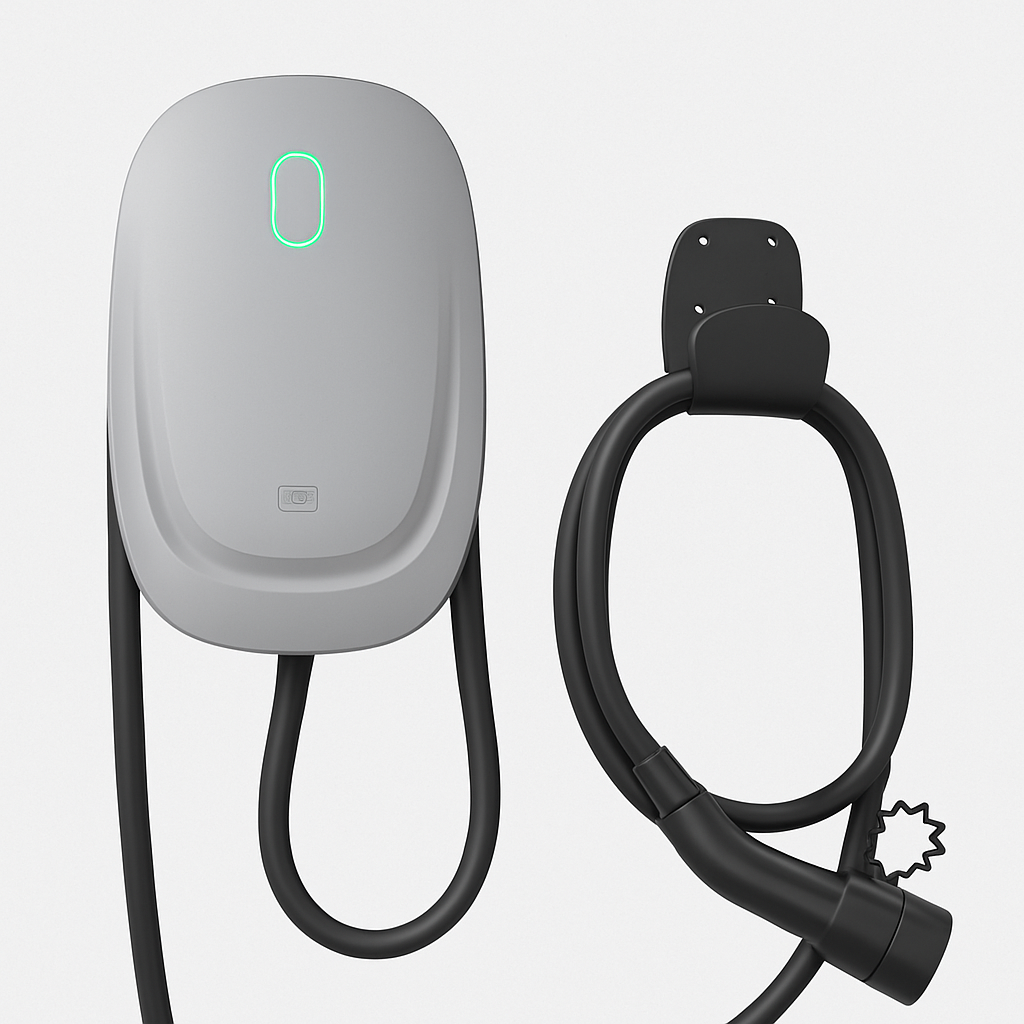

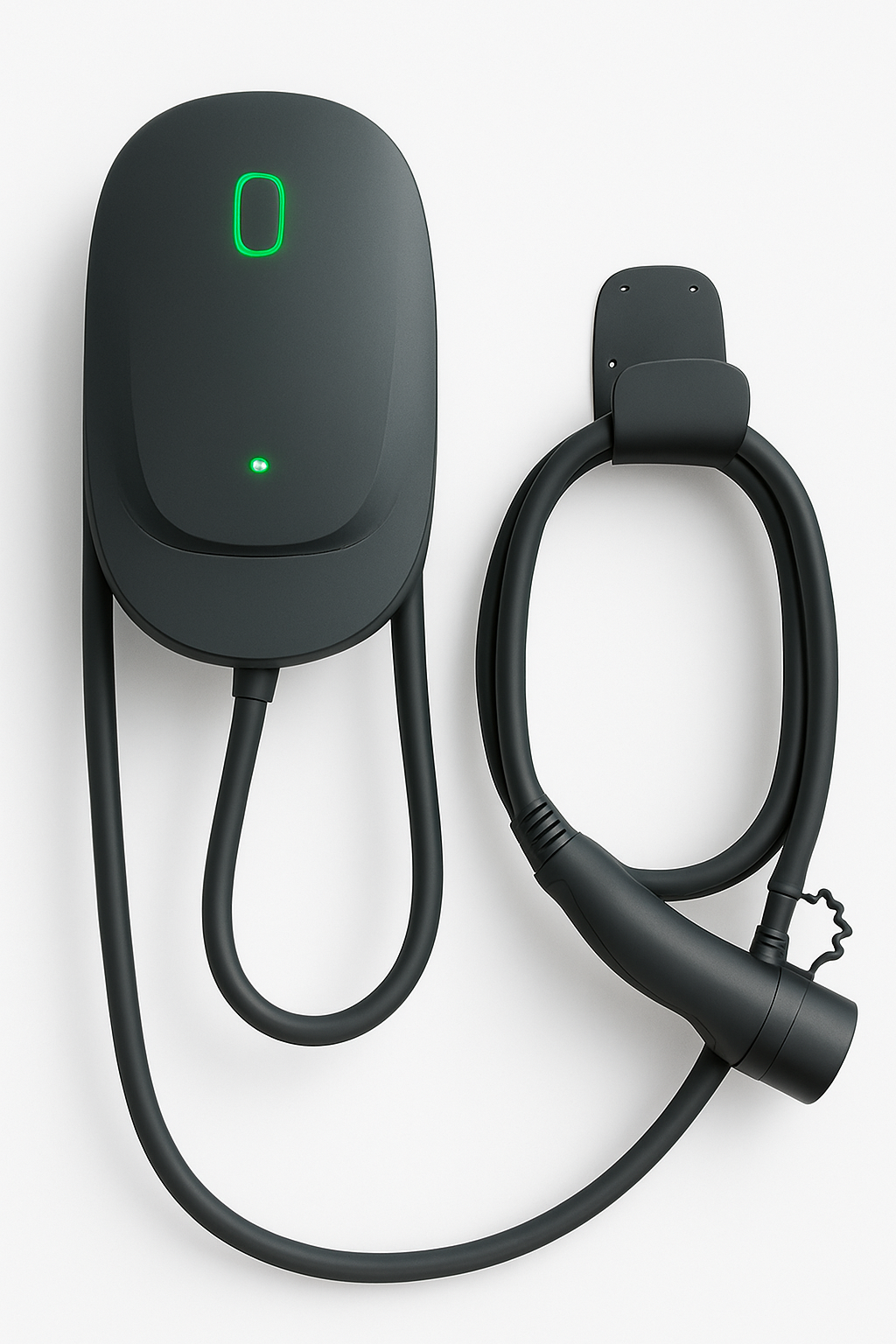

• 4 Color Options: White, Blue, Black, and Purple.

• Standard 2-year warranty: Learn more at warranty service.

Specifications:

• Model: Wattsaving E22

• AC Power Output Rating: Maximum 22 kW

• AC Power Input Rating: 380±20% Va.c., 50/60 Hz, 32 A (Max)

• Connector Type: Type 2

• Indicator: LED

• Cable Length: 5m

• Charging Mode: Plug-and-Charge / RFID Card

• Card Reader: RFID

• Enclosure Ratings: IP65 for indoor or outdoor installation

• Input Wiring: Hardwired

• Input Cord (three-phase): L1, L2, L3, N (Neutral), and PE (Protective Earth)

• Input Cord (single-phase): L1, N (Neutral), and PE (Protective Earth)

• Protection: Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection.

• Ground Fault Detection: Built-in Type A RCD (6mA DC)

• Storage Temperature: -40 to 80℃

• Operating Temperature: -30 to 55℃

• Operating Humidity: 5% to 95%

• Certification: CE

• Standards: EN/IEC 61851-1:2019, EN/IEC 61851-21-2:2021, IEC/IEC 62955:201, IEC/IEC 62196-2

• Dimensions (H x W x D): 13" x 7.9" x 4.6" (331 x 201 x 116 mm)

• Net Weight: 3.8kg

• Gross Weight: 4.6kg

• Warranty: 2 Years

• Installation: Wall mounted / Pedestal mounted

Package List:

• Wattsaving E22 EV Charger (with connector) x 1

• Connector Holster x 1

• Screw Terminal Strip x 1

• Wall-dock Back Panel x 1

• Wall Anchor x 7

• Type A Screw (M4 x 12 mm) x 4

• Type B Screw (M4 x 10 mm) x 4

• Type C Screw (M4 x 30 mm) x 7

• RFID Card x 2

• Product Quick Guide x 1

• User Manual x 1
