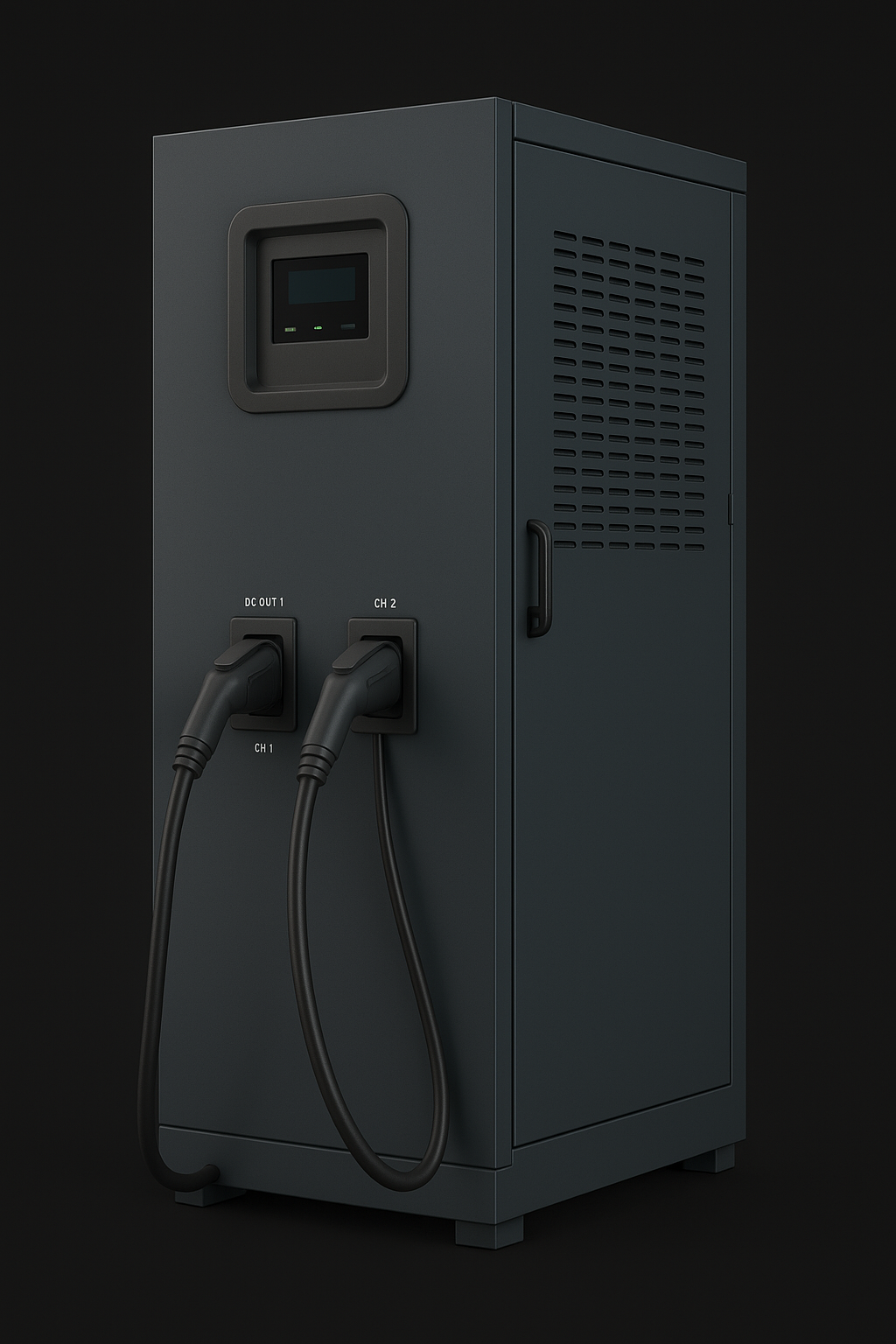

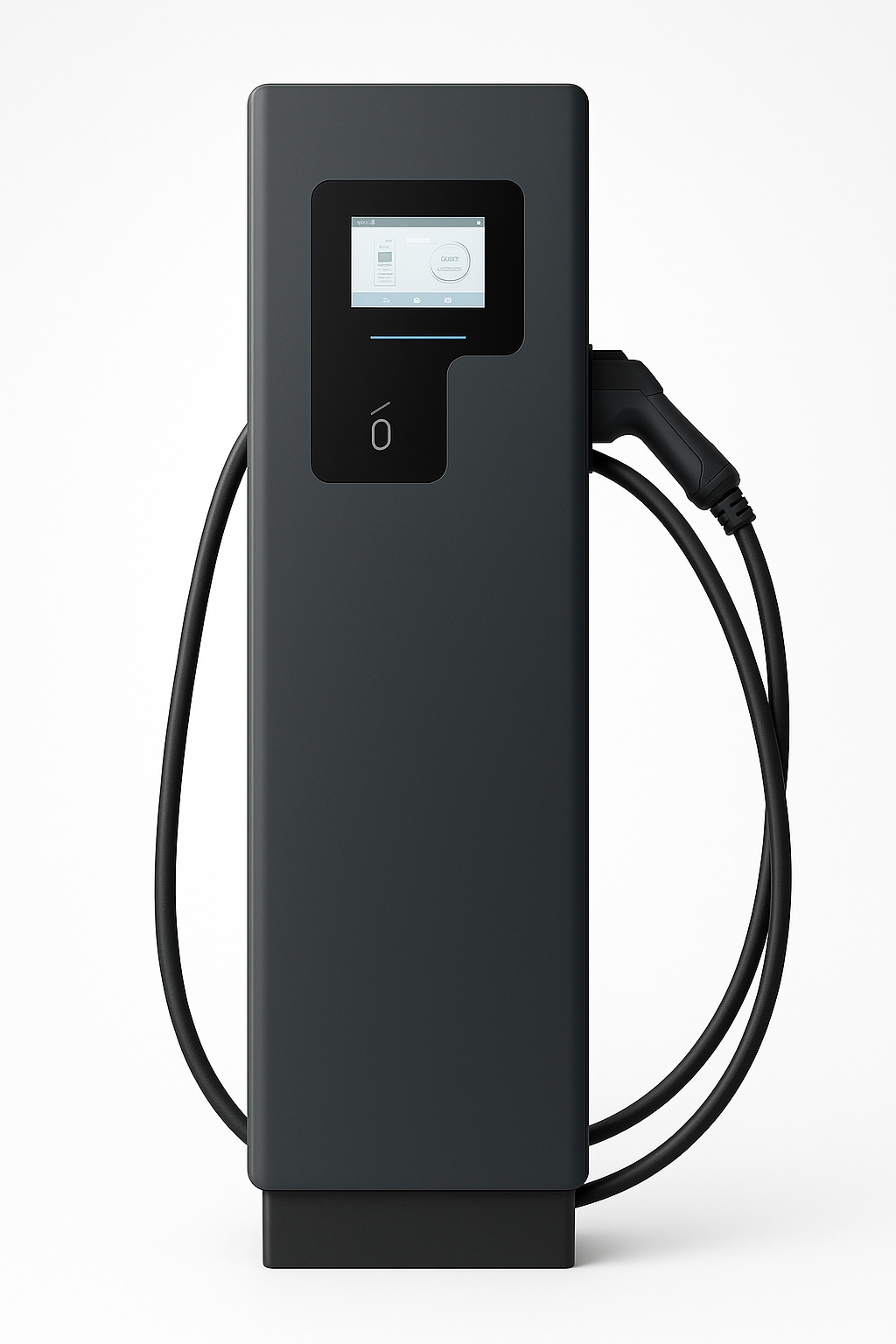

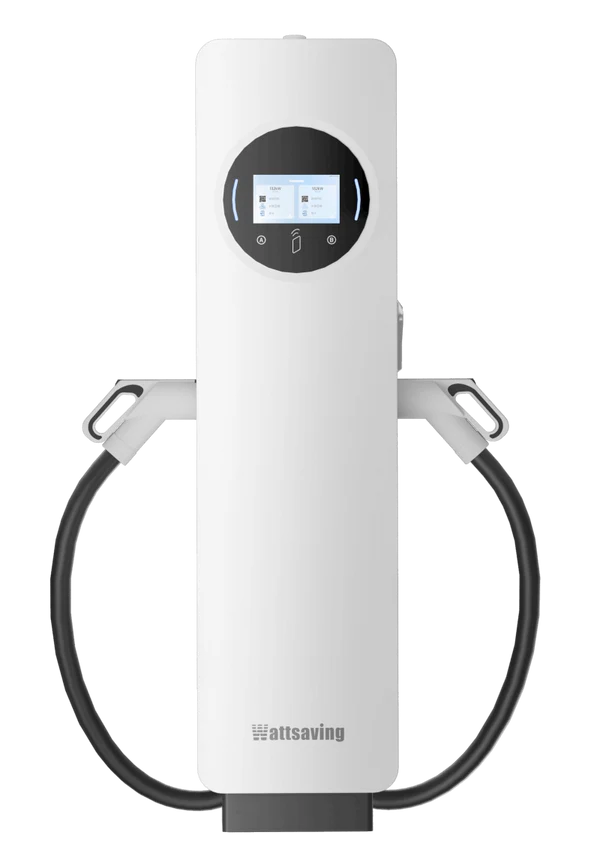

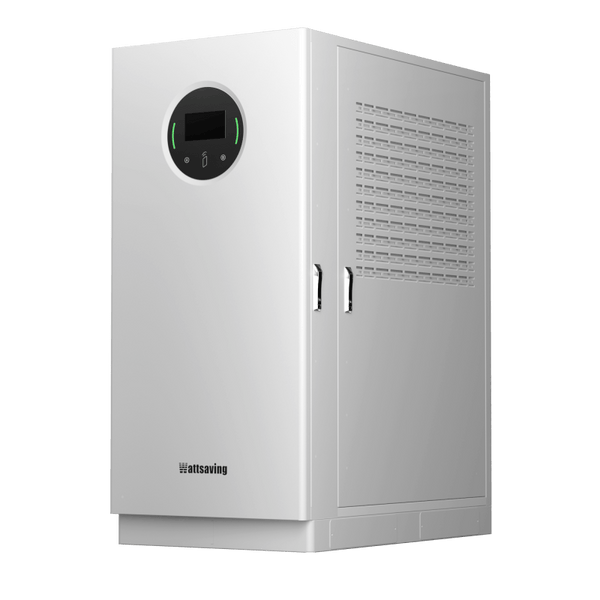

Fe Faith AmpCore™ T480 Charging Hub – 480kW DC

Fe Faith AmpCore™ T480 Charging Hub – 480kW DC

Power up electric vehicles faster and smarter with the Wattsaving T480 480kW DC Fast Charging Hub—a high-performance charging solution built for busy EV stations, commercial fleets, and highways. With blazing-fast 480kW output, it significantly reduces charging time and supports multiple vehicles simultaneously. Its advanced thermal management system ensures safe and consistent operation even in demanding environments.

Designed for scalability and efficiency, the T480 integrates seamlessly with smart energy management systems, making it future-ready and cost-effective. Whether you're expanding your EV infrastructure or optimizing fleet charging, this powerful hub delivers reliability, speed, and intelligent control in one compact unit.
Comparable to: ABB DC Fast Charger, Siemens SICHARGE D (based on power output and multi-vehicle support).

What It Does

The Fe Faith AmpCore™ T480 Charging Hub delivers ultra-fast 480kW DC charging, allowing multiple electric vehicles to charge simultaneously. Ideal for high-traffic commercial and public EV stations, it reduces charging time drastically while providing consistent and reliable charging. With advanced cooling and smart energy management features, this hub is designed to meet the demanding needs of modern electric vehicle networks.

Key Features:

• Ultra-Fast Charging: 480kW DC output enables rapid charging for high-capacity EVs.

• Multi-Vehicle Support: Capable of charging multiple vehicles at once, improving station efficiency.

• Smart Energy Management: Compatible with grid load balancing and dynamic energy systems for optimal energy use.

• Advanced Cooling System: Ensures stable performance even in high-demand environments with integrated thermal management.

• Durable & Weatherproof Design: Built to withstand harsh outdoor conditions, IP54-rated for protection against dust and water.

• Scalable Infrastructure: Ideal for expanding commercial stations and large-scale EV networks.

Specifications:

• Model: Wattsaving T480

• Output DC Power: Maximum 480 kW

• Input Voltage: 323~480Vac, 380Vac Type

• Output Voltage: 150~1000Vdc

• Frequency: 45-55Hz

• Current: 1600A MAX

• Efficiency: ≥94%

• Communication: 4G / Ethernet

• Cable Length: 5m

• Input Wiring: Hardwired

• Display: 7-inch LCD Screen

• Input Cord (three-phase): L1, L2, L3, N (Neutral), and PE (Protective Earth)

• Protection: Overcurrent protection, Residual current protection, Ground protection, Surge protection, Over/Under Voltage protection, Over/Under temperature protection.

• IP Rated: IP54

• Storage Temperature: -40 to 80℃

• Operating Temperature: -40℃~55℃

• Operating Humidity: 5%~95%

• Connectors: 8 - 12

• Standards:

  • GB/T 18487.1-2015

  • GB/T 27930-2015

  • NB/T 33001-2018

  • NB/T 33008.1-2018

• Dimensions (H x W x D): 1700 x 950 x 1303mm

• Net Weight: 625.0kg

• Gross Weight: 650.0kg

• Warranty: 2 Years

Compatible With

Ideal for commercial and fleet EV stations, the Wattsaving T480 supports a wide range of electric vehicle models, making it a versatile choice for high-capacity charging.

Comparable To

ABB DC Fast Charger, Siemens SICHARGE D (based on power output and multi-vehicle support).

Disclaimer

Ensure proper installation according to the manufacturer’s guidelines. Specifications are subject to change without notice.
