Fe Faith Forge™ TAZ Pro XT+ – Dual Extrusion 3D Printer

Fe Faith Forge™ TAZ Pro XT+ – Dual Extrusion 3D Printer

The FE-FAITH TAZ Pro XT+ is a professional-grade 3D printer engineered for industrial precision and reliability. Ideal for prototypes, production parts, and functional models—this powerhouse delivers unmatched performance.
Comparable to: Stratasys F370, Ultimaker S5 (based on dual extrusion and industrial-grade performance).

What It Does

The TAZ Pro XT+ is designed for advanced and precise 3D printing. With a dual extrusion system, it can print with multiple materials or colors, making it perfect for high-performance prototypes, production parts, and functional models. It is built for strength, accuracy, and reliability, providing industry-leading results for even the most demanding applications.

Key Features:

• High-Performance Printing: Designed for industrial-quality results, ensuring superior strength and accuracy for professional applications.

• Large Build Volume: With a spacious print area, it is ideal for large-scale applications requiring bigger parts.

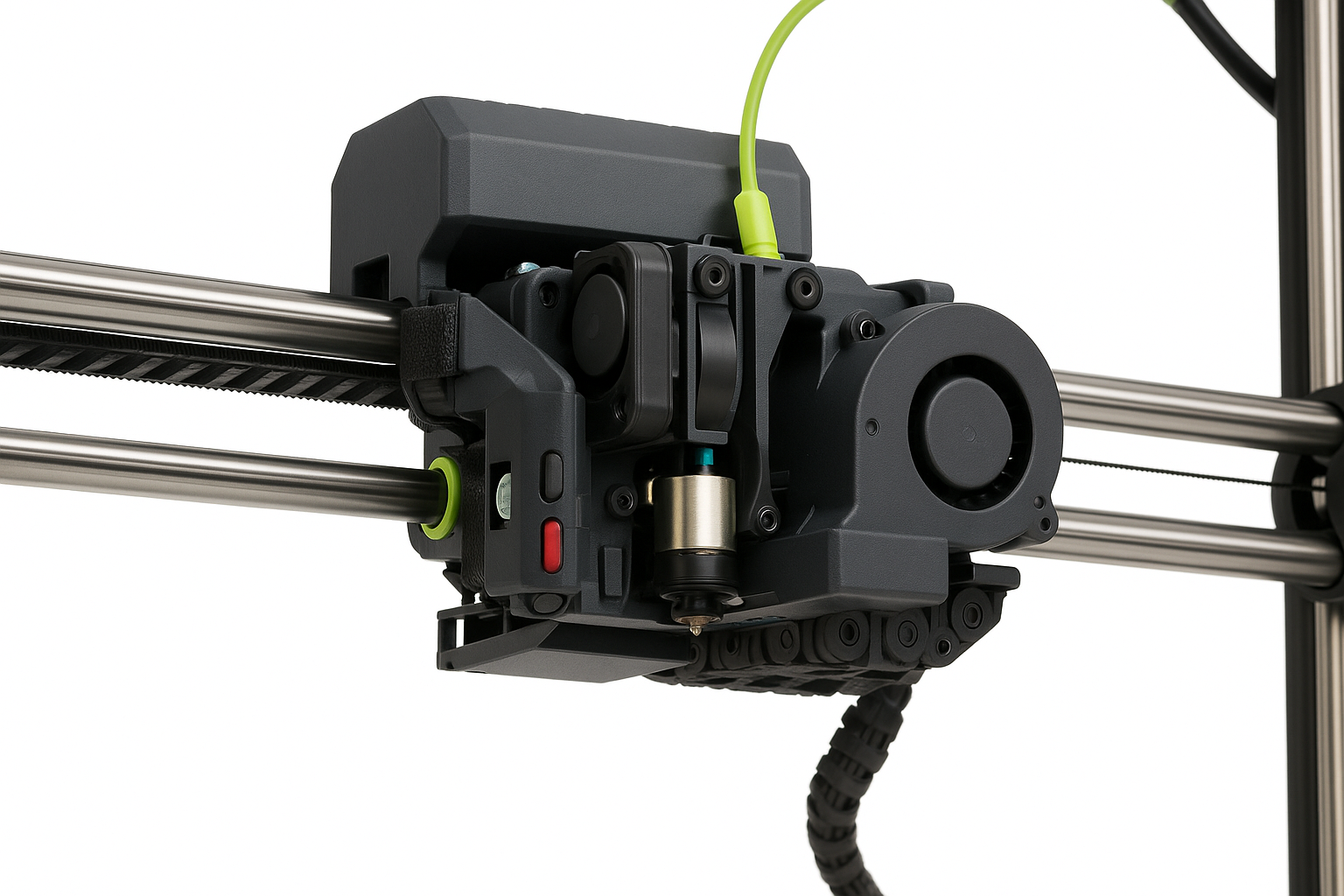

• Dual Extruder System: Allows you to print with multiple materials or colors for advanced prototyping and complex designs.

• Advanced Material Compatibility: Supports a wide range of filaments, including carbon fiber and metal composites, offering flexibility in material choices.

• Touchscreen Interface: Intuitive control with real-time monitoring and adjustments, making it easy to operate.

• Automated Calibration: Precision printing with auto bed leveling and nozzle cleaning, ensuring consistent results.

Specifications:

• 3D Printing Technology: FFF (Fused Filament Fabrication)

• Build Volume: 285 x 285 x 586 mm (11.22 x 11.22 x 23.07 inches)

• Standard Tool Head Model: Asteroid 285

• Equipped Layer Height Range: 0.3mm (300 microns) to 0.9mm (900 microns)

• Platform Layer Height Capabilities: 0.05mm (50 microns) to 1.8mm (1800 microns)

• Nozzle Diameter & Material: 1.2mm GammaMaster® Steel

• Maximum Hot End Temperature: 290°C (554°F) - Firmware Limited

• XYZ Positional Resolution: X and Y axes - 0.01mm (10 microns), Z axis - 0.002mm (2 microns)

• Movement System: GT2 Belt Drive with Igus SST Rods and Polymer Bushings

• Maximum Travel Speed: 300 mm/s - Firmware Limited

• Print Bed Heater: 360W 24V Silicon

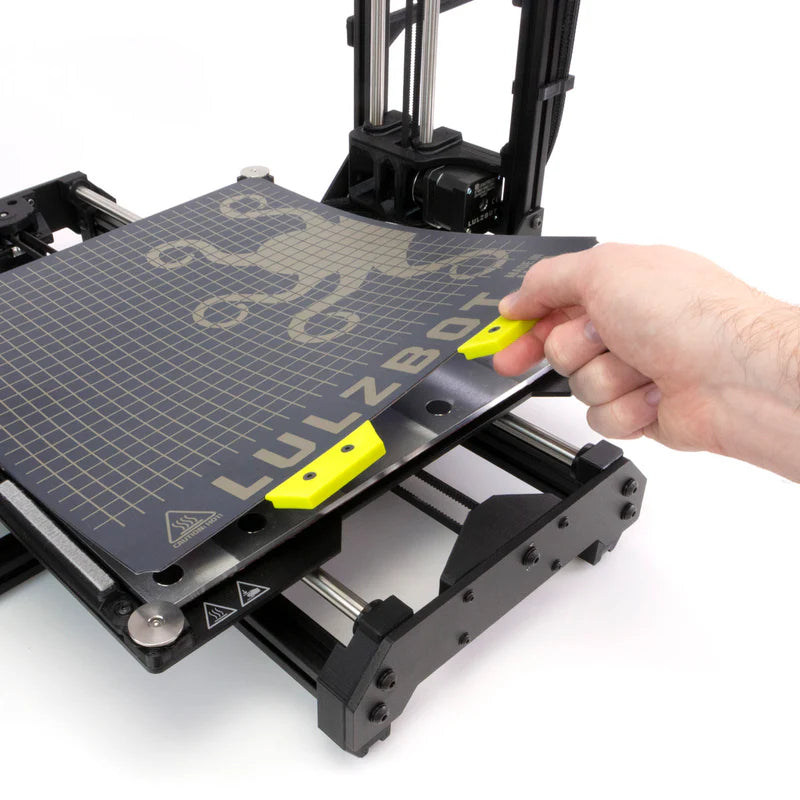

• Print Bed Material: Magnetic Flex Bed System

• Maximum Print Bed Temperature: 110°C (230°F)

• Filament Diameter Compatibility: 2.85mm (Standard), 1.75mm (Optional)

• Filament Sensor: Runout and Stripping Detection

• Mainboard: 32-bit Archim 2.2b with Trinamic TMC2130 drivers for quiet printing

• Firmware: Marlin

• Bed Leveling System: Automatic BLTouch 16-Point Mesh

• Calibration: Automatic X-Axis Tramming, Z-Offset, and Backlash Compensation

• Power Supply: 500W 24V Mean Well, Auto-Switching

• Power Input: 100VAC-240VAC

• Slicer Software Recommendation: Cura LE (LulzBot Edition)

• OS Compatibility: Windows, macOS, Linux

• Supported File Formats: STL, OBJ, X3D, 3MF

• Operating Temperature Range: 41°F to 113°F (5°C to 45°C)

• Supported Print Materials: PLA, TPU, ABS, PETG, PVA, PVB, Nylon, PC, and others below 290°C

• Enclosure: Optional Accessory Available

• Connectivity Options: USB Serial, Includes 16GB Flash Drive for Standalone Printing

• Certifications: FCC, CE, RCM, ETL (Intertek/UL), CSA, OSHWA, WEEE

• Warranty: 1-year standard with options for extended warranties

• Country of Origin: USA

Comparable To

Stratasys F370, Ultimaker S5 (based on dual extrusion and industrial-grade performance).

Disclaimer

Ensure proper use according to the manufacturer’s guidelines. Specifications are subject to change without notice.
