Fe Faith PrintCore™ SideKick 747 – Premium

Fe Faith PrintCore™ SideKick 747 – Premium
A high-performance desktop 3D printer built for precision and reliability, perfect for professionals, educators, and hobbyists seeking high-quality, consistent results in a compact design.

What It Does
The Fe Faith PrintCore™ SideKick 747 – Premium combines precision, reliability, and versatility. Designed for users who demand high-quality prints, it supports 1.75mm filament and delivers outstanding performance for a wide range of applications, from prototypes to custom parts. With its sturdy frame, modular upgrades, and easy-to-use design, it’s an excellent choice for tight workspaces, studios, and classrooms.

Specifications

• 3D Printing Technology: FFF (Fused Filament Fabrication)

• Build Volume: 232 x 232 x 248 mm (9.13 x 9.13 x 9.76 inches)

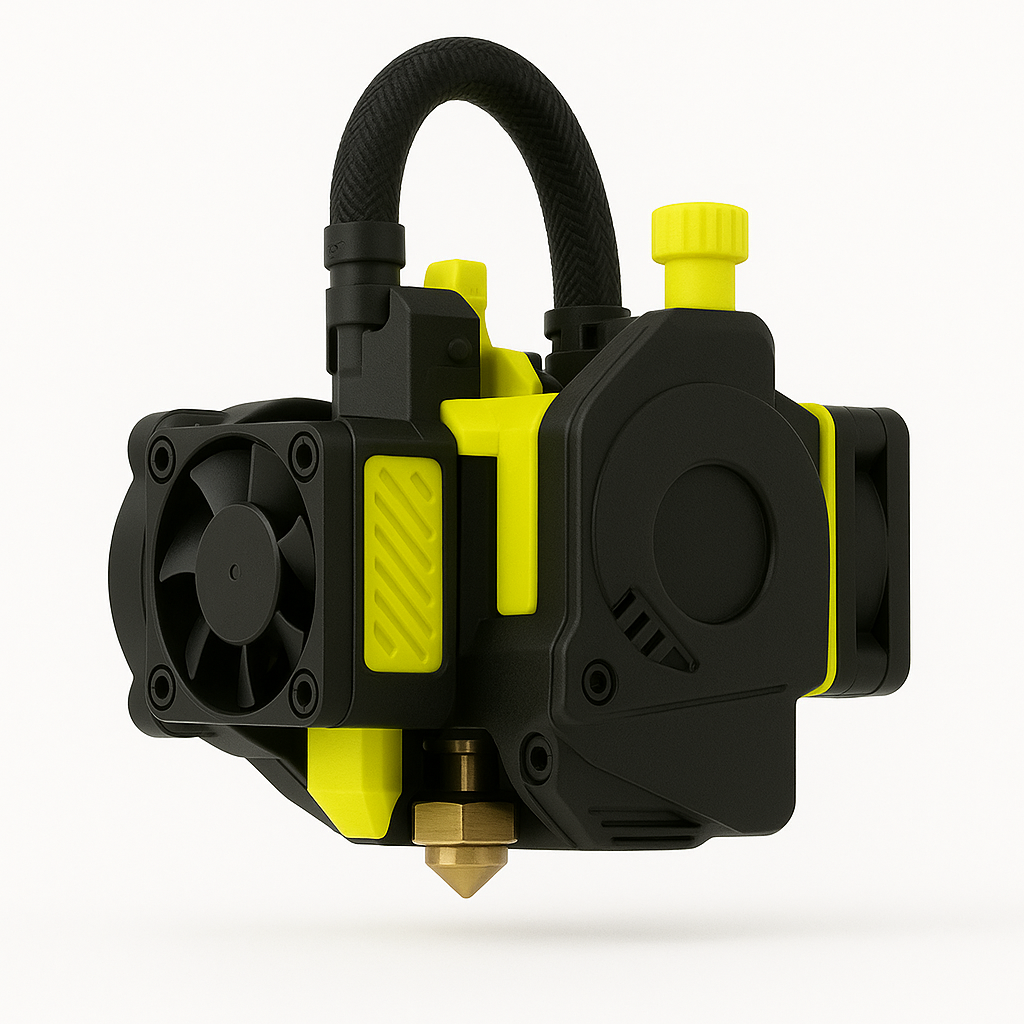

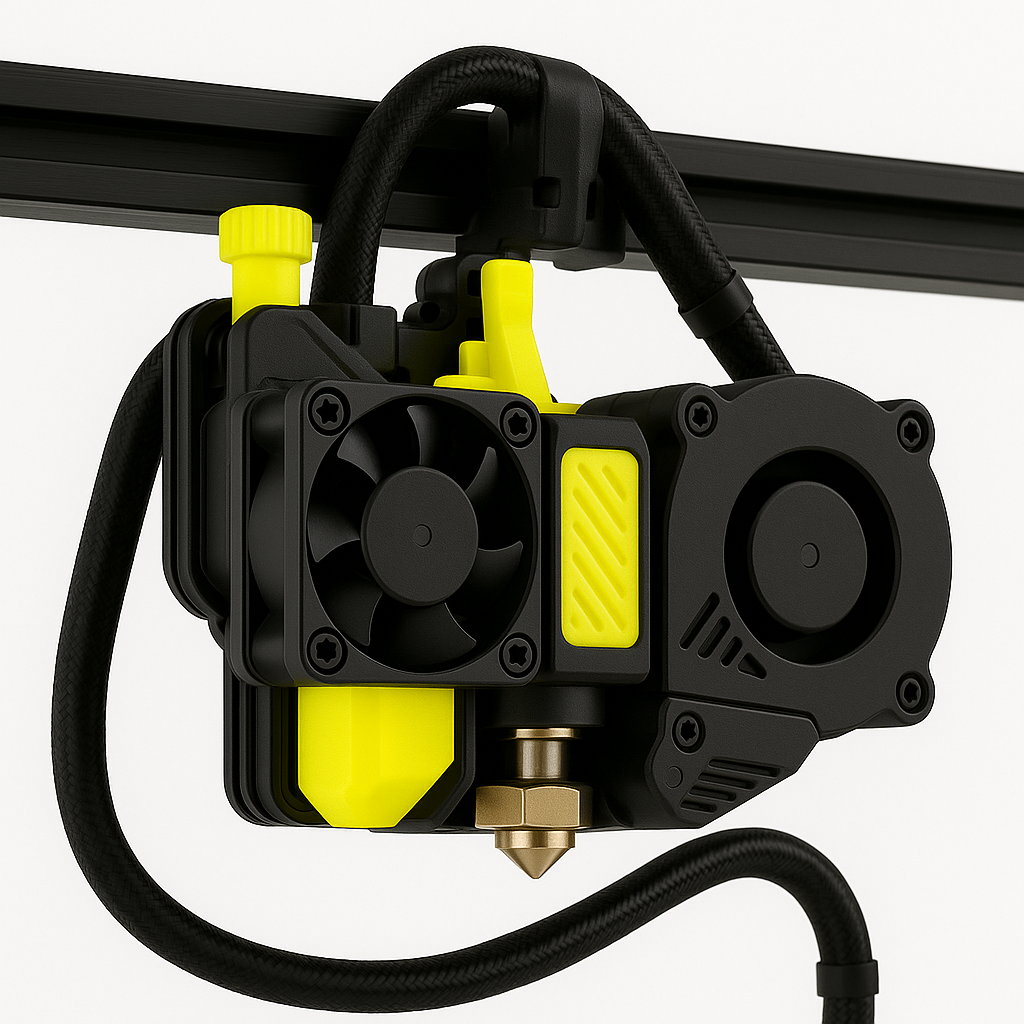

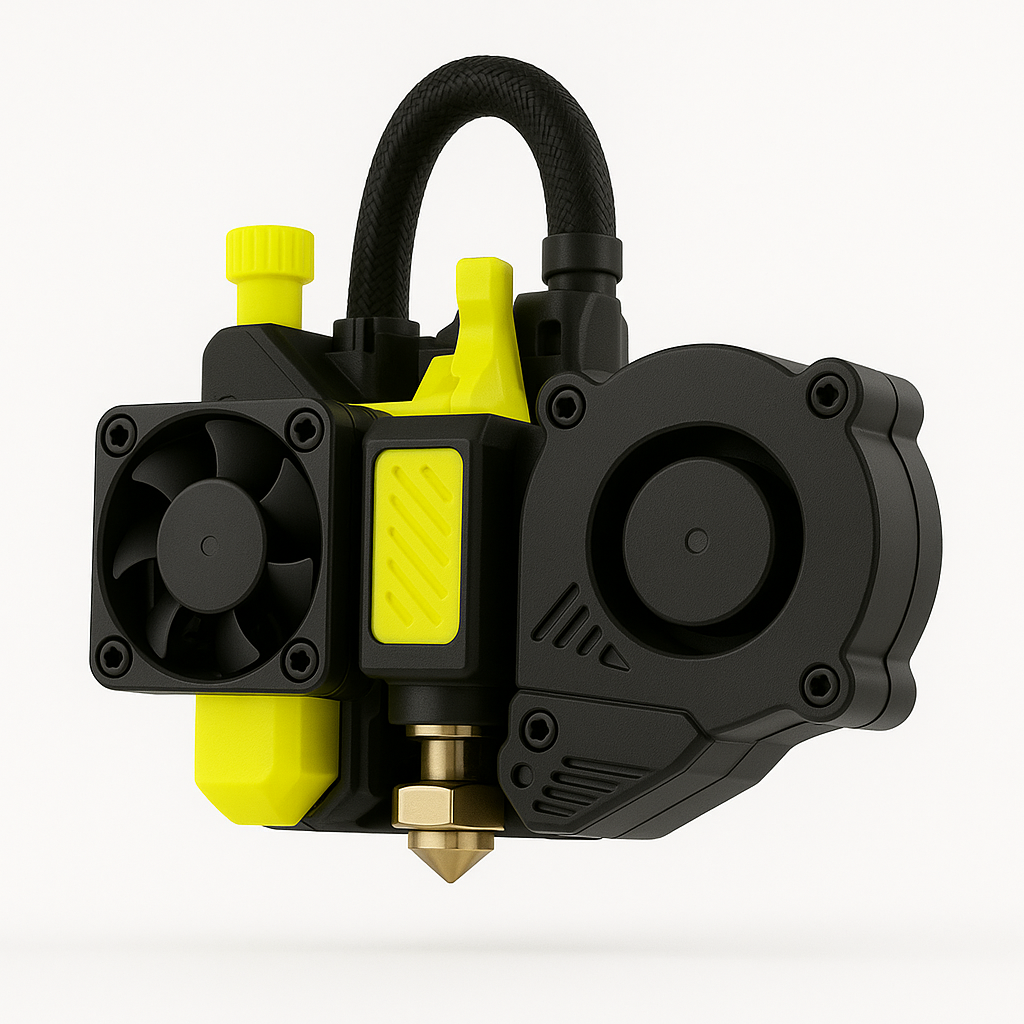

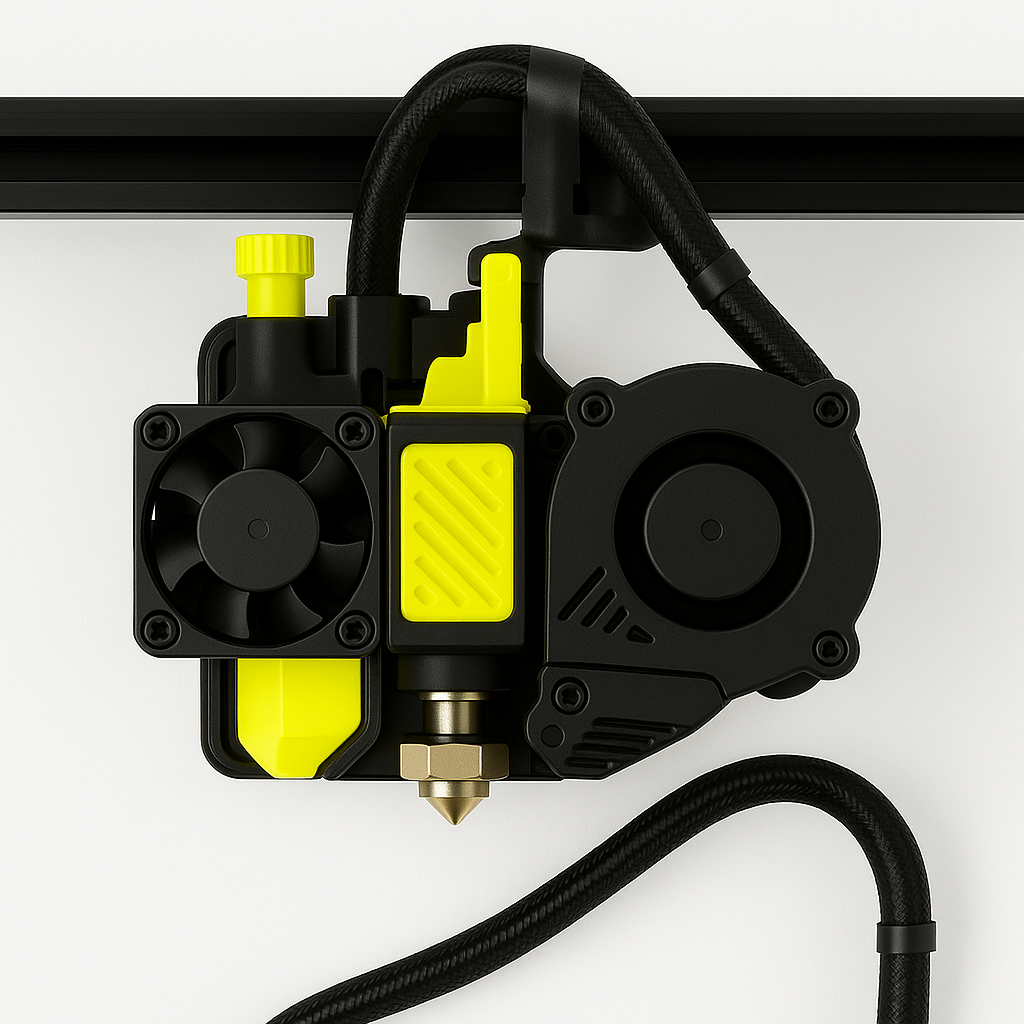

• Standard Tool Head Model: Meteor 175

• Equipped Layer Height Range: 0.1mm (100 microns) to 0.4mm (400 microns)

• Platform Layer Height Capabilities: 0.05mm (50 microns) to 1.8mm (1800 microns)

• Nozzle Diameter & Material: 0.5mm Brass

• Maximum Hot End Temperature: 290°C (554°F) - Firmware Limited

• XYZ Positional Resolution: X and Y axes - 0.01mm (10 microns), Z axis - 0.005mm (5 microns)

• Movement System: GT2 Belt Drive with Delrin V-Wheels and Aluminum Extrusion

• Maximum Travel Speed: 300 mm/s - Firmware Limited

• Print Bed Heater: 225W 24V Silicon

• Print Bed Material: Magnetic Flex Bed System

• Maximum Print Bed Temperature: 110°C (230°F)

• Filament Diameter Compatibility: 1.75mm (Standard), 2.85mm (Optional)

• Filament Sensor: Runout Detection

• Mainboard: 8-bit Einsy Retro with Trinamic TMC2130 drivers for quiet printing

• Firmware: Marlin

• Bed Leveling System: Automatic BLTouch 16-Point Mesh

• Calibration: Automatic X-Axis Tramming, Z-Offset Wizard

• Power Supply: 350W 24V Mean Well, Manual Switching

• Power Input: 100VAC-240VAC

• Slicer Software Recommendation: Cura LE (LulzBot Edition)

• OS Compatibility: Windows, macOS, Linux

• Supported File Formats: STL, OBJ, X3D, 3MF

• Operating Temperature Range: 41°F to 113°F (5°C to 45°C)

• Supported Print Materials: PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C

• Enclosure: No

• Connectivity Options: USB Serial, Includes 8GB SD Card for Standalone Printing

• Certifications: N/A

• Warranty: 1-year standard with options for extended warranties

• Country of Origin: USA

Key Features

• 1.75mm Filament Compatibility: Supports PLA, ABS, TPU, and more for a range of materials

• Plug-and-Play Design: Easy to set up with minimal configuration required

• Open Source Hardware: Fully customizable for advanced users and developers

• Sturdy Frame: Metal construction provides stability for consistent printing

• Modular Upgrades: Easily replace or upgrade components like tool heads and print surfaces

• User-Friendly Interface: Simple control panel and touchscreen for hassle-free operation

Compatible With
Fe Faith PrintCore™ SideKick 747 – Premium is compatible with a variety of 1.75mm filament types, including PLA, ABS, TPU, PETG, PVA, and Nylon.

Comparable To
Comparable to Creality Ender 3 V2 and Prusa Mini (based on ease of use, build volume, and affordability).

Disclaimer: Fe Faith™ products are independently engineered and not manufactured by or affiliated with Creality, Prusa, or other third-party brands mentioned. All trademarks are property of their respective owners.
