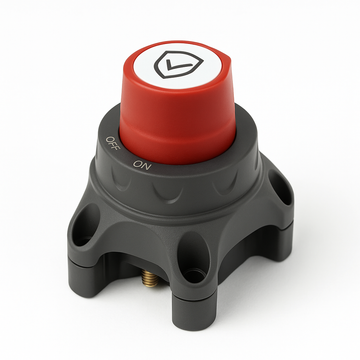

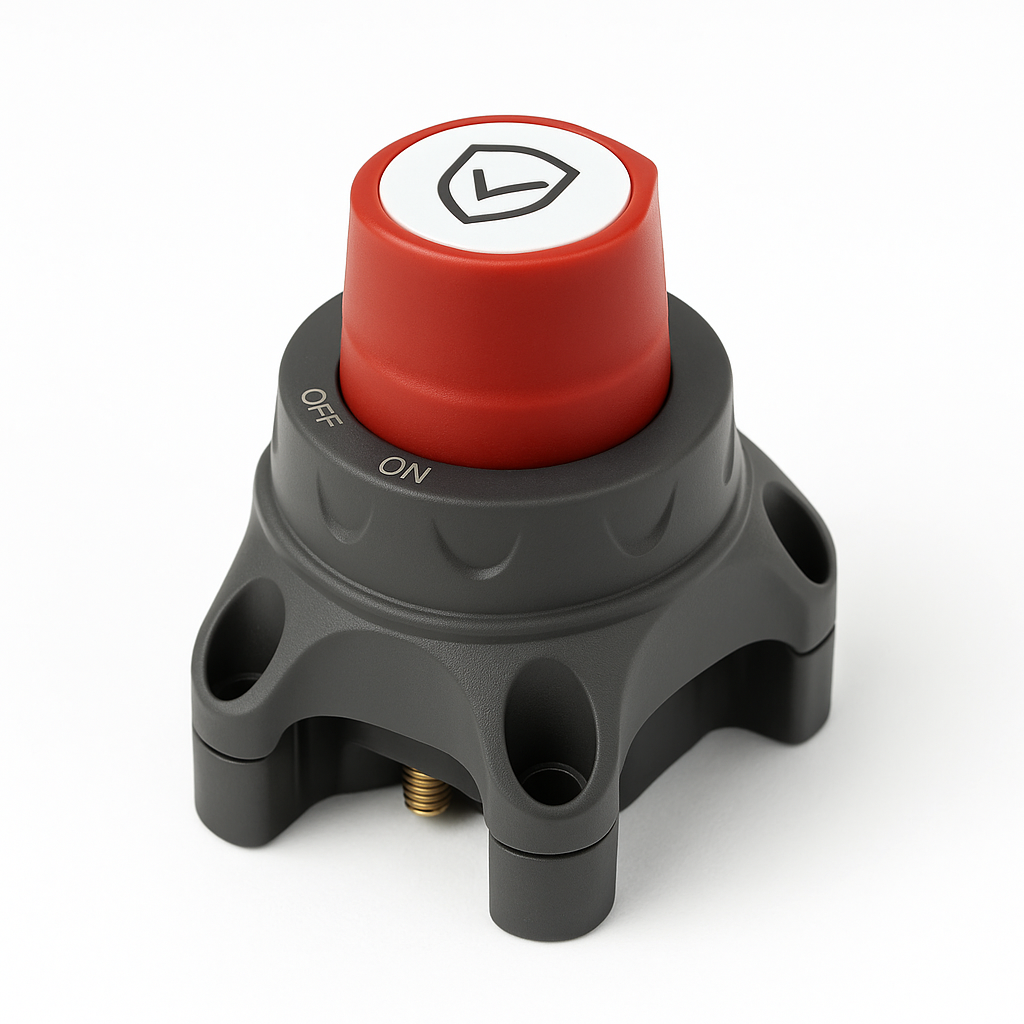

Fe Faith SolisEdge™ 275A DC Disconnect Switch

Fe Faith SolisEdge™ 275A DC Disconnect Switch
A high-capacity manual power switch designed for safely isolating battery banks and DC power sources in solar, RV, marine, and backup systems.

What It Does
The Fe Faith SolisEdge™ 275A DC Disconnect Switch is engineered to safely isolate and disconnect battery banks and DC power sources, providing an essential component for solar, RV, marine, and backup energy systems. With a 275A continuous current rating and up to 1250A momentary capacity, this switch is designed for high-demand systems where safe power control is necessary. Whether for maintenance or emergency shutdowns, the switch ensures secure operation in all environments. Its corrosion-resistant terminals and robust construction make it ideal for both indoor and outdoor applications.

Specifications

• Continuous Rating: 275 Amps

• Intermittent Rating: 455 Amps DC Cranking

• Cranking Rating: 1250 Amps DC

• Voltage Rating: Up to 48 Volts DC

• Operation: On/Off

• Mounting: Recessed or Surface

• Termination Stud Size: 2 x 10 mm (3/8" studs) - Accepts large cables

Key Features

• High Current Capacity: Rated for 275A continuous, 455A intermittent, and up to 1250A momentary (5 seconds)

• Reliable Power Isolation: Safely disconnects batteries and DC systems for maintenance or during emergencies

• Heavy-Duty Construction: Built to handle high current and resist harsh environmental conditions

• Versatile Mounting: Suitable for recessed or surface mounting in RVs, boats, solar setups, or off-grid systems

• Rotary On/Off Switch: Easy-to-use knob with clear visual indicators for quick operation

• Corrosion-Resistant Terminals: Ensures long-lasting performance and stable electrical connections

Compatible With
This disconnect switch is ideal for use with DC systems, including solar, RV, marine, and backup power systems requiring high-current isolation. It supports a wide range of applications with its high-power ratings and versatile mounting options.

Comparable To
Comparable to Blue Sea Systems DC Disconnect Switches and ANL Disconnects (based on current capacity, durability, and weather-resistant design).

Disclaimer: Fe Faith™ products are independently engineered and are not manufactured by or affiliated with Blue Sea Systems or any other third-party brands mentioned. All trademarks are the property of their respective owners.
