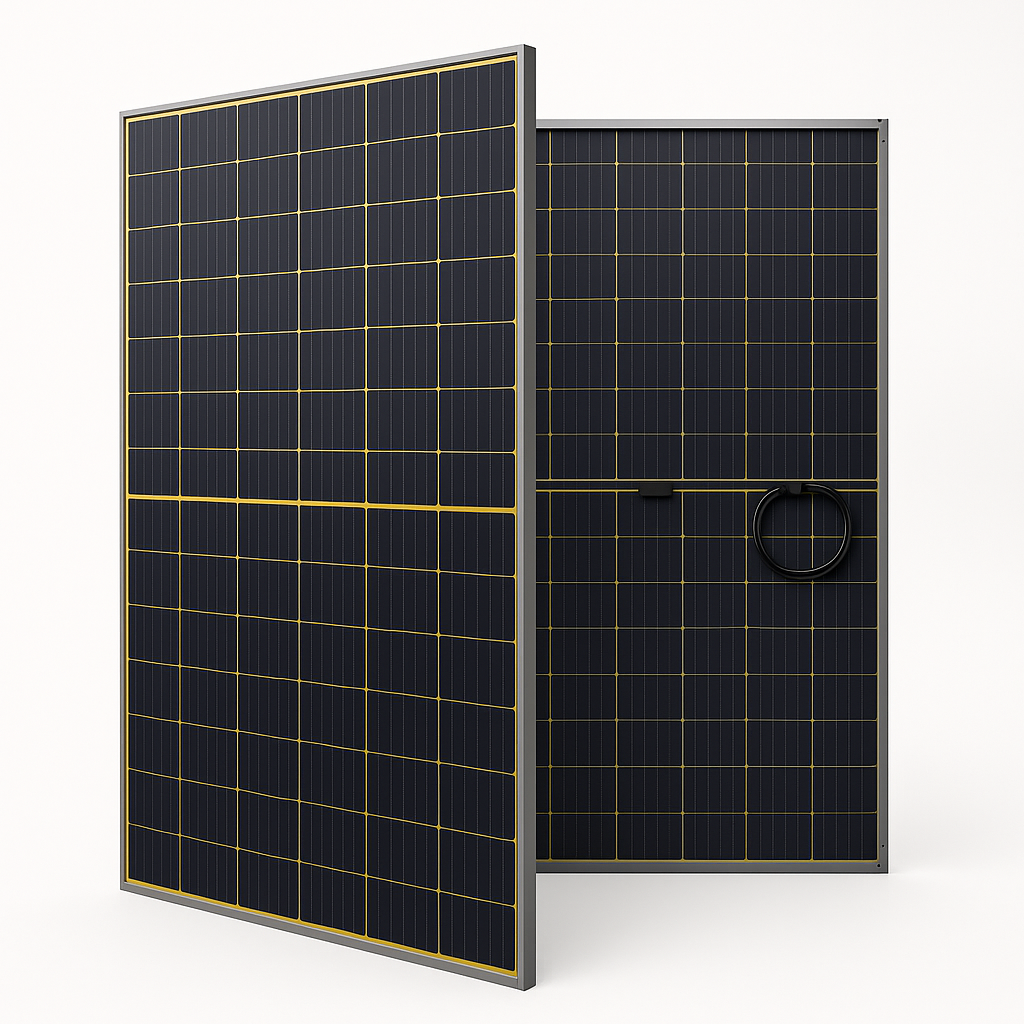

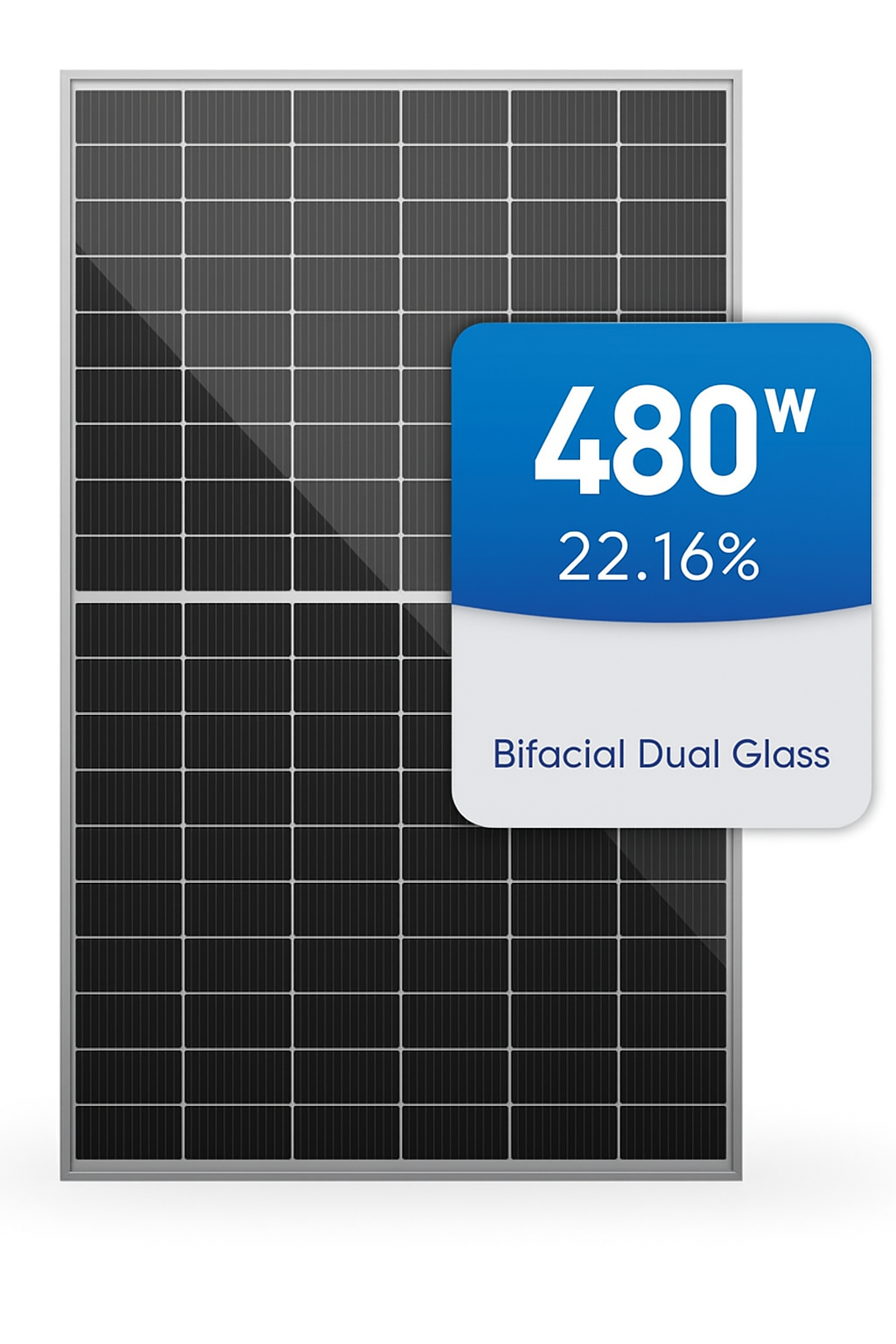

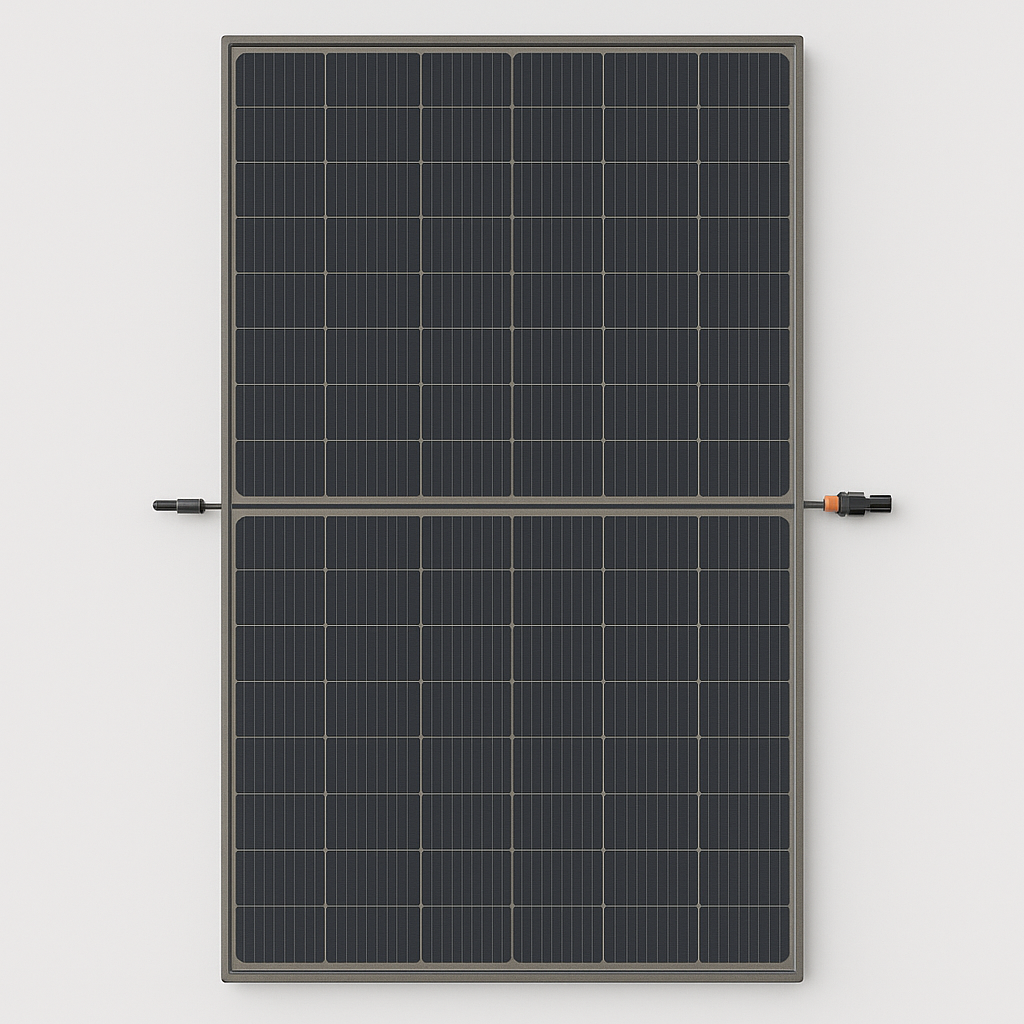

Fe Faith SolisEdge™ 480W N-Type TOPCon Bifacial Panel

Fe Faith SolisEdge™ 480W N-Type TOPCon Bifacial Panel

Experience next-generation solar efficiency with the Fe Faith SolisEdge™ 480W N-Type TOPCon Bifacial Panel. Designed with N-Type TOPCon technology, 182mm wafers, and a 16BB half-cell layout, this high-performance module delivers superior energy yield on both sides. Its dual-glass construction, premium materials, and advanced bifaciality make it ideal for residential rooftops, commercial arrays, and industrial-scale solar projects.

What It Does

The Fe Faith SolisEdge™ 480W Bifacial Panel uses cutting-edge N-Type TOPCon cells to minimize degradation and boost conversion efficiency. The bifacial design captures reflected light from below, delivering up to 80±5% additional energy from the rear side. Durable enough to withstand snow loads up to 5400Pa and harsh environmental conditions, this panel combines long-term reliability with high-output performance for on-grid and off-grid systems.

Specifications

Power Range: 460W ~ 480W
Maximum Efficiency: 22.16%
Number of Cells: 120 (6×20 configuration)
Module Dimensions: 1910 × 1134 × 30 mm
Weight: 26.0 kg
Front Glass: 2.0mm Coated Semi-Tempered Glass
Back Glass: 2.0mm Semi-Tempered Glass
Frame: Anodized Aluminum Alloy
Junction Box: IP68 Rated with 3 Bypass Diodes
Cable: 4mm², 300mm (+) / 300mm (−), customizable
Wind/Snow Load: 5400 Pa
Connector: MC4 Compatible
Bifaciality: 80±5%

Key Features

• N-Type TOPCon Technology: Boosts performance and resists light-induced degradation.

• High Power Output: Up to 480W per panel with a peak efficiency of 22.16%.

• Bifacial Design: Rear-side generation increases total energy yield.

• Dual-Glass Durability: 2mm tempered glass on both sides for strength and weather resistance.

• IP68 Junction Box: Offers long-term protection from dust and moisture.

• High Load Resistance: Certified to endure 5400Pa of snow and wind pressure.

Compatible With

Optimized for ground-mounted solar farms, carports, elevated racks over reflective surfaces, and commercial rooftops that benefit from rear-side energy capture.

Comparable To

Comparable to SunEvo EVO 5N, Jinko Tiger Neo Bifacial, and Canadian Solar BiHiKu TOPCon series panels, delivering similar bifacial efficiency and N-Type technology advantages.

Disclaimer:
Fe Faith™ products are independently engineered and not manufactured by or affiliated with SunEvo, Jinko, Canadian Solar, or other third-party brands mentioned. All trademarks are property of their respective owners.
