Fe Faith SolisEdge™ Ground Mount Frame – Large Panels

Fe Faith SolisEdge™ Ground Mount Frame – Large Panels

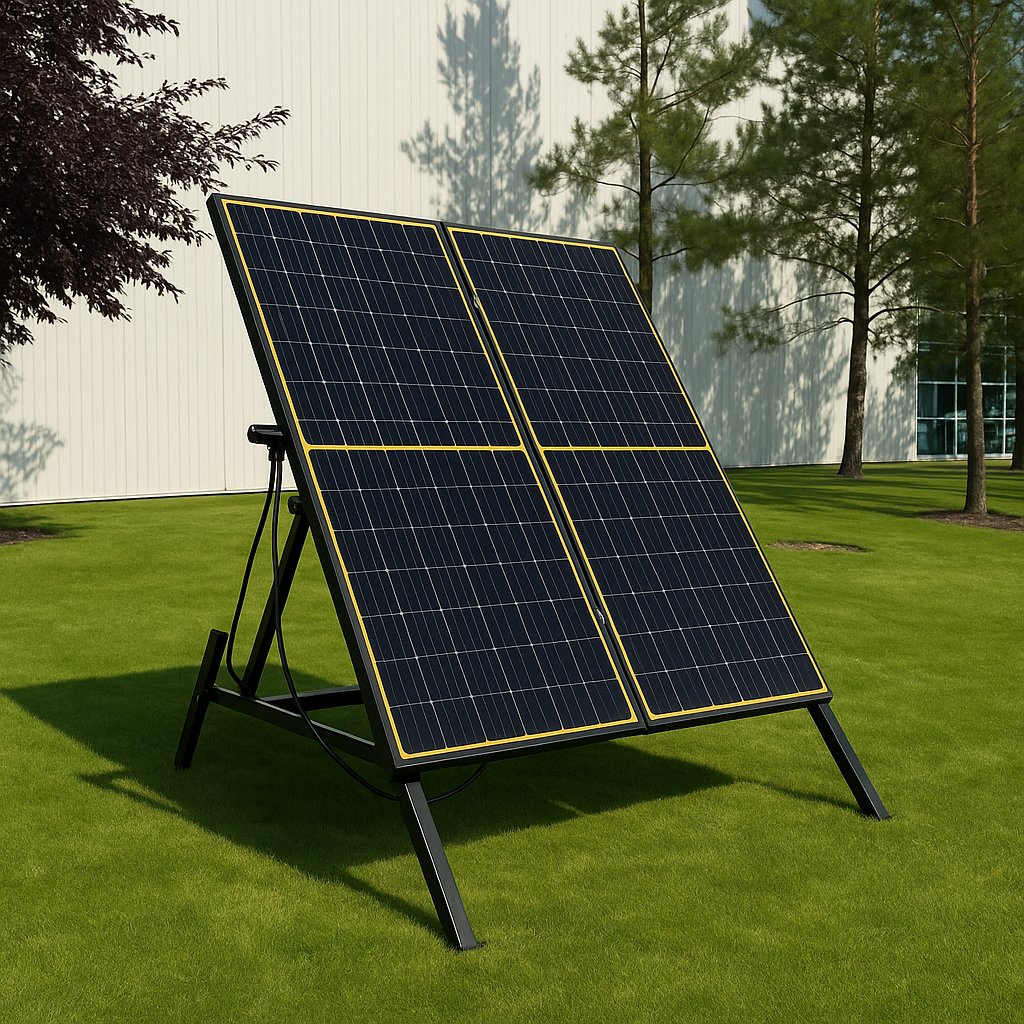

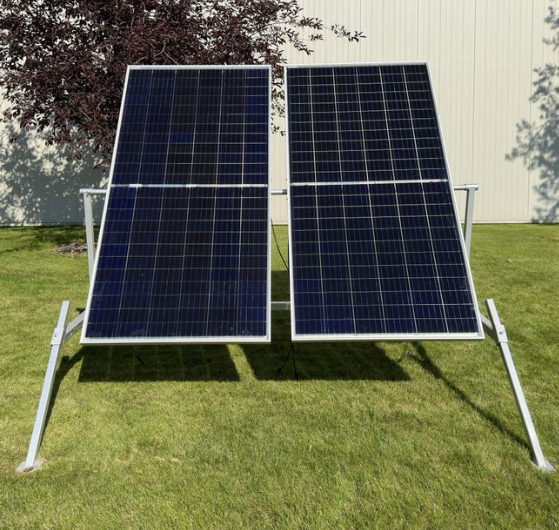

A heavy-duty and adaptable mounting solution for ground-based solar installations, the Fe Faith SolisEdge™ Ground Mount Frame – Large Panels is engineered to hold up to two high-capacity solar panels with unmatched flexibility. With a fully adjustable tilt range and legs designed for uneven terrain, this system ensures optimal solar exposure year-round. Built with thick-wall welded steel tubing, it’s a reliable and secure choice for long-term outdoor solar mounting in diverse environments.

What It Does

The Fe Faith SolisEdge™ Ground Mount Frame supports up to two 60 or 72-cell solar panels (totaling up to 550W) and allows you to adjust the panel tilt from 0° to 90°. It features a strong welded steel structure and adjustable legs to accommodate uneven ground. Ground spike-ready foot pads provide extra stability in high-wind conditions, making it ideal for both residential and remote off-grid solar installations.

Specifications

Panel Compatibility: Up to two 60 or 72-cell solar panels (up to 550W)
Tilt Angle: Adjustable 0° to 90°
Material: 2” and 1 ½” thick wall welded steel tubing
Finish: Silver or black powder coat (black available by special order)
Mounting Hardware: Stainless steel and galvanized fasteners
Weight: Flat-packed for easy shipping and assembly
Ground Security: Foot pads with 3/8” holes for ground spikes

Key Features

• Fits Up to Two Panels: Supports dual 60 or 72-cell solar panels with a combined output of up to 550W.

• Fully Adjustable Tilt: 0°–90° tilt range allows for precise seasonal angle adjustments.

• Uneven Ground Adaptable: Adjustable leg design ensures level installation on sloped or rugged terrain.

• Robust Construction: Made from thick-wall welded steel tubing for exceptional durability.

• Secure Installation: Foot pads with pre-drilled holes accommodate ground spikes for wind resistance.

• Complete Kit: Includes aluminum rail brackets, all necessary fasteners, and easy-to-follow assembly instructions.

Compatible With

Ideal for off-grid systems, remote power applications, homesteads, and residential properties using 60-cell or 72-cell panels. Suitable for locations where rooftop mounting is not practical.

Comparable To

Comparable to Solar Super Store Adjustable Ground Mounts, IronRidge Ground Mount Systems, and EcoDirect Universal Ground Racks in terms of capacity, adjustability, and ruggedness.
