Fe Faith SolisEdge™ Top-of-Pole Mount – Universal

Fe Faith SolisEdge™ Top-of-Pole Mount – Universal

Maximize your solar energy production with the Fe Faith SolisEdge™ Top-of-Pole Mount (TPM), a durable and versatile mounting solution designed for solar photovoltaic (PV) modules. Perfect for residential, commercial, and off-grid systems, the TPM is engineered with high-strength welded steel and corrosion-resistant hardware to ensure long-term reliability in diverse weather conditions. Its adjustable tilt-angle settings allow for easy seasonal optimization, enabling you to achieve the highest energy yield possible.

What It Does

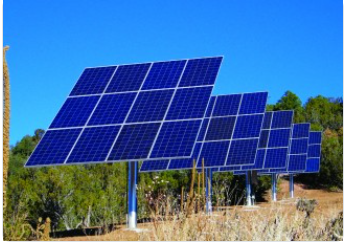

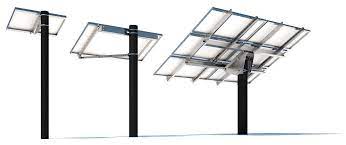

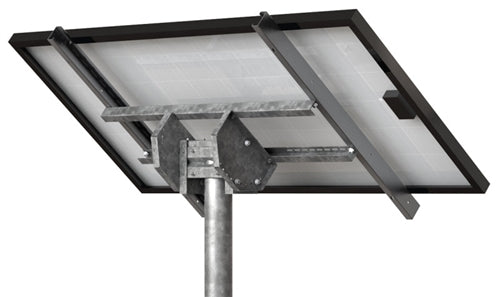

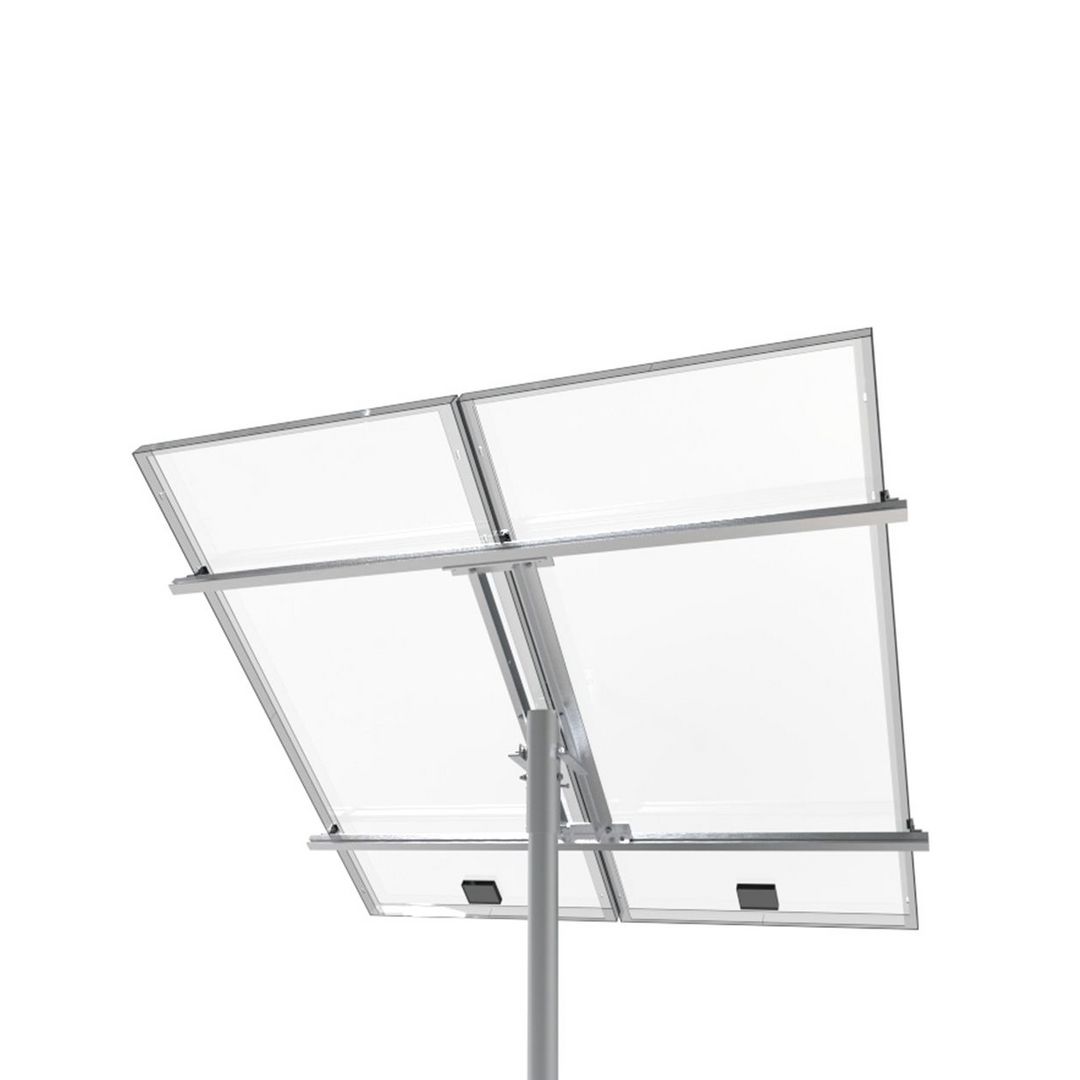

The Fe Faith SolisEdge™ Top-of-Pole Mount is an efficient, single-pole mounting solution for solar panels. It supports up to 24 solar modules and can withstand harsh weather conditions. With six adjustable tilt angles ranging from 15° to 65°, it allows for optimal solar production throughout the year. This easy-to-install mount is perfect for those looking to maximize the performance of their solar panels in both residential and commercial setups.

Specifications

• Mount Type: Top-of-Pole (TPM)

• Material: MIG welded steel, 6000 series aluminum rails, stainless steel hardware

• Tilt Angle: Adjustable from 15° to 65° (in 10° increments)

• Wind Rating: Standard 90 MPH, optional 130 MPH high-wind version

• Module Support: 1 to 24 modules (up to 4.1kW)

• Finish Options: Hot-dip galvanized or powder-coated steel; anodized aluminum rails

• Compatibility: Fits Schedule 40 or 80 rigid steel pipe (installer supplied)

Key Features

• Durable Construction: Made with MIG welded steel backs, 6000 series aluminum rails, and corrosion-resistant hardware for strength and longevity.

• Wind Resistant: Designed to withstand 90 MPH wind zones with optional high-wind versions rated for 130 MPH.

• Flexible Tilt Angles: Offers six tilt settings (15° to 65°) in 10° increments for seasonal optimization of solar output.

• Multiple Module Capacity: Supports up to 24 solar modules, with a maximum capacity of 4.1 kW per pole.

• Easy Installation: Simple single-person assembly with minimal components, compatible with Schedule 40 or 80 steel pipe.

Compatible With

The Fe Faith SolisEdge™ Top-of-Pole Mount is compatible with a wide range of solar panels and standard steel pipes (Schedule 40 or 80). It’s perfect for users looking to install multiple solar modules for both residential and commercial purposes.

Comparable To

Comparable to IronRidge XR100 and Racking Systems that offer robust, adjustable mounting solutions, the Fe Faith SolisEdge™ Top-of-Pole Mount provides an equally durable, efficient, and cost-effective solution for solar panel installations.
