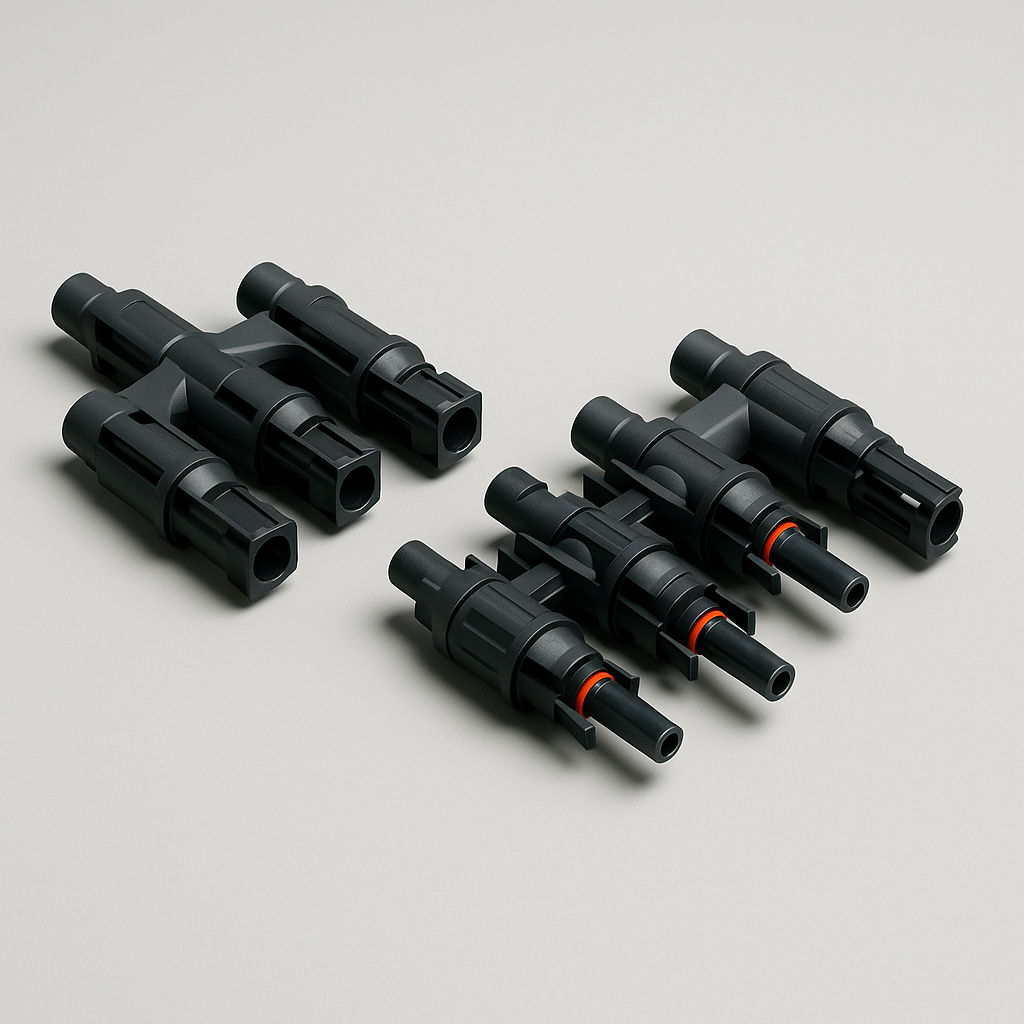

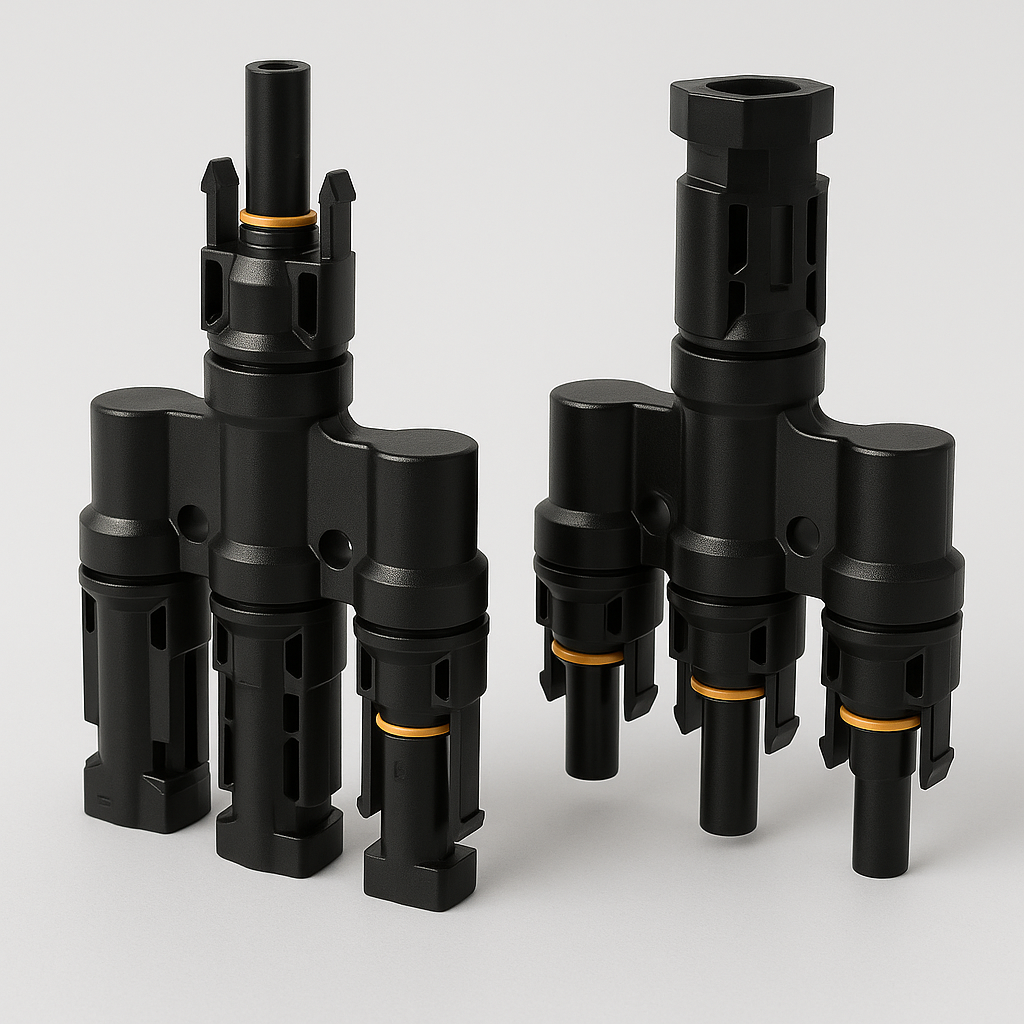

The FE-FAITH Exotronic 3 to 1 'Y' Branch Joiner Solar Connector Pair is an essential component for expanding your solar system, allowing you to connect three solar panels to a single output. This high-quality 'Y' branch joiner ensures a safe, secure, and efficient connection while saving time on installation. Made from durable, UV-resistant materials, it is built to withstand the elements and provide long-lasting performance in all weather conditions. Ideal for off-grid solar systems, RVs, and large residential installations, this connector is compatible with MC4 connectors and is perfect for increasing your system’s energy output.
Key Features:
-
3 to 1 Connection:
Connects three solar panels to one output, ideal for large or expanded solar systems. -
High Efficiency:
Maximizes power output and ensures reliable electrical connections for optimal system performance. -
Durable and Weatherproof:
UV-resistant, weatherproof construction for long-term outdoor use, ensuring durability in harsh environments. -
Easy to Install:
Quick-locking mechanism for tool-free installation and secure connections, simplifying setup. -
Versatile Compatibility:
Works with MC4 connectors and is compatible with most solar panel systems, making it highly adaptable. -
Safe and Secure:
Prevents accidental disconnections and ensures stable power transfer throughout the system.
Specifications:
| Specification | Details |
|---|---|
| Waterproof and Dustproof (Mated) | IP67 |
| Waterproof and Dustproof (Unmated) | IP2X |
| Rated Voltage | 1000V DC (IEC) |
| Contact Material | Tinned Copper |
| Insulation Material | PC/PA |
| Contact Material | Copper Alloy, Tin Plated |
| Temperature Range | –40°C to +90°C (IEC) |
| Upper Temperature Limit | +105°C (IEC) |
| Degree of Protection (Mated) | IP67 |
| Degree of Protection (Unmated) | IP2X |
| Flame Class | UL94-V0 |
| Locking System | Snap-in |
| Contact Resistance of Plug Connectors | 0.5mΩ |
| Safety Class | II |
| Test Voltage | 6kV (50Hz, 1min) |
| Salt Mist Spray Test, Severity Degree | 5 (according to IEC 60068-2-52) |
| Rated Current | 17A (1.5mm²), 22A (2.5mm²; 14AWG), 30A (4mm², 6mm²; 12AWG, 10AWG) |
| Connector System | Ø 4 mm |
| SKU | Exo-PV-MDY3 |
| Barcode # | 9361784001333 |
| MPN # | Exo-PV-MDY3 |
The FE-FAITH Exotronic 3 to 1 'Y' Branch Joiner Solar Connector Pair is designed to expand your solar power system efficiently while ensuring safe, secure, and long-lasting connections in all weather conditions. Perfect for those needing to connect multiple solar panels to one output, this connector pair makes installation quick and easy while maintaining system reliability and efficiency.
