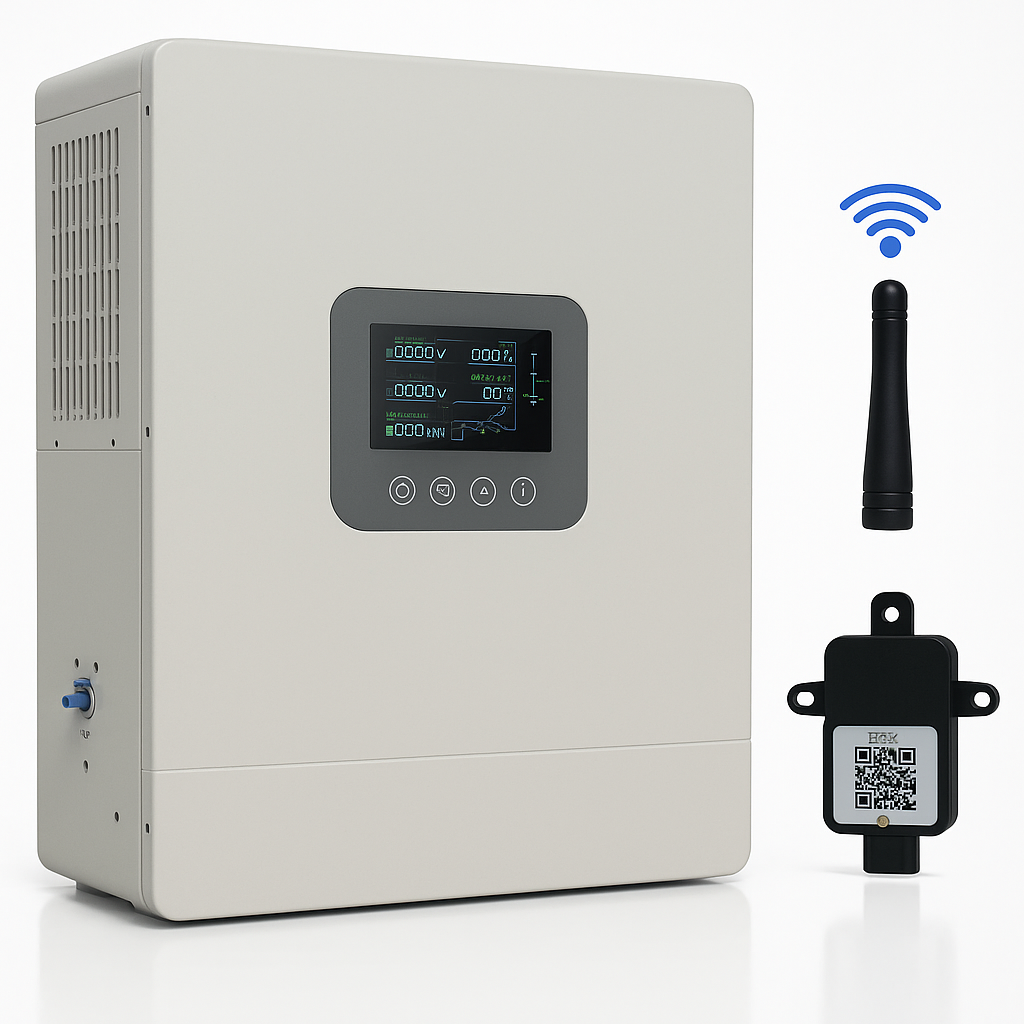

Fe Faith VoltMate™ 5000W 48V Hybrid Inverter – Split Phase

Fe Faith VoltMate™ 5000W 48V Hybrid Inverter – Split Phase
Maximize your off-grid and backup power capabilities with this all-in-one inverter, solar charge controller, and battery charger solution.

What It Does
The FE-FAITH 5000W 48V Hybrid Inverter combines the functionality of a powerful inverter, solar charge controller, and battery charger into one unit, offering seamless integration for off-grid power systems. This hybrid inverter supports 48V battery banks and provides 120V/240V split-phase AC output, making it perfect for homes, RVs, small businesses, and backup power applications. With MPPT solar charging, pure sine wave output, and intelligent battery management, this inverter ensures reliable and efficient energy independence, whether you are using solar power, battery storage, or grid power.

Key Features

• All-in-One Hybrid Inverter: Combines 5000W inverter, 80A MPPT solar charger, and 60A AC charger.

• Split Phase Output: Delivers 120V/240V AC, supporting both standard and high-voltage appliances.

• Supports 48V Battery Systems: Compatible with lithium, AGM, GEL, and flooded battery types.

• Pure Sine Wave Output: Provides clean and stable power, ideal for sensitive electronics.

• MPPT Solar Charging: 80A maximum current for optimal solar harvesting.

• Grid-Tie & Off-Grid Ready: Auto transfer switch for grid, generator, and solar input.

• Multiple Charging Modes: Choose from solar only, utility only, or solar priority.

• Advanced Protection: Includes overload, over-temperature, short circuit, and reverse polarity safeguards.

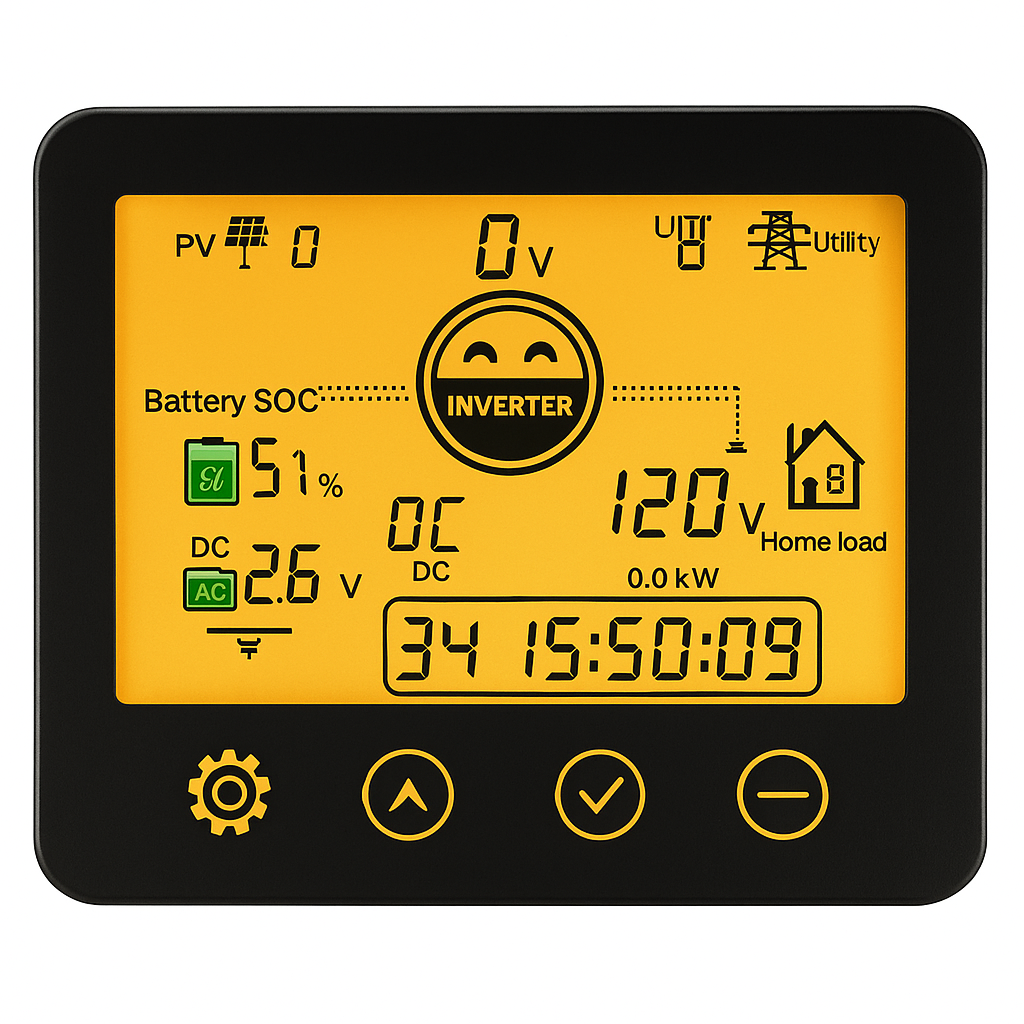

• LCD Display & Remote Monitoring: Easily manage and monitor the system’s performance.

Specifications

• AC Input Mode

  • Rated Input Voltage: 110/120VAC

  • Input Voltage Range: 90V-140VAC

  • Frequency: 50Hz/60Hz (auto detect)

  • Overload/Short Circuit Protection: Circuit breaker

  • Efficiency: > 95%

  • AC Reverse Protection: Available

  • Max Bypass Overload Current: 40A

• Invert Mode

  • Output Voltage Waveform: Pure Sine Wave

  • Rated Output Power: 5000W

  • Rated Output Voltage: 120VAC

  • Peak Power: 10000W

  • Bypass Breaker: 63A

  • Rated Battery Input Voltage: 48V

  • Min Starting Voltage: 44V

  • Power Saving Mode: Load ≤ 25W

• AC Charging Mode

  • Battery Type: Lead acid or lithium battery

  • Max Charge Current: 60A

  • Charge Voltage Range: 40-60VDC

  • Overcharge Protection: Alarm and turn off charging after 1 minute

• PV Charging Mode

  • Max Input Power: 5000W

  • PV Charging Current Range: 0-80A (can be set)

  • Max PV Open Circuit Voltage: 500VDC

  • PV Operating Voltage Range: 120-450VDC

  • MPPT Voltage Range: 120-450VDC

  • Battery Voltage Range: 40-60VDC

  • Max Output Power: 5000W

  • Charging Short Circuit Protection: Blown fuse

Applications
Ideal for off-grid homes, cabins, RVs, small businesses, or emergency backup power, the Fe Faith VoltMate™ 5000W Hybrid Inverter ensures reliable and efficient energy, combining solar, battery storage, and grid power seamlessly.
