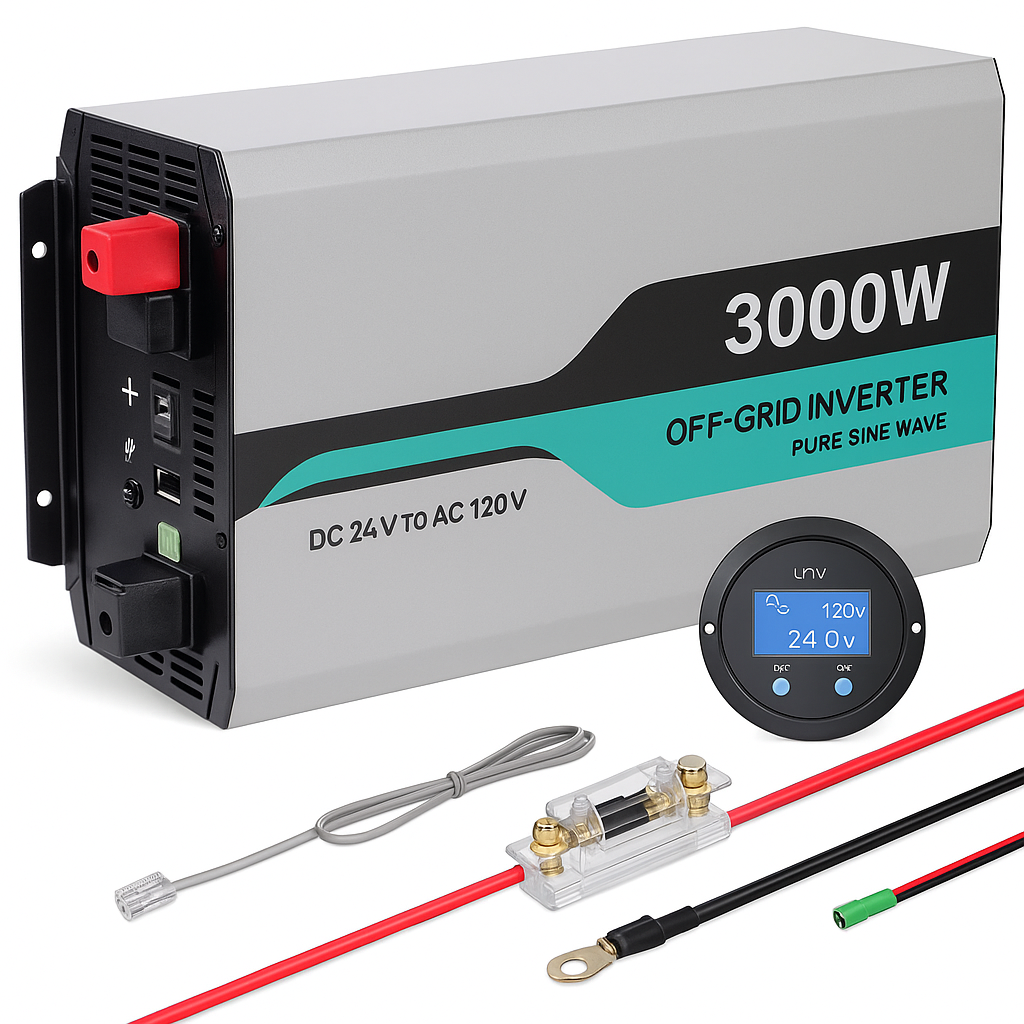

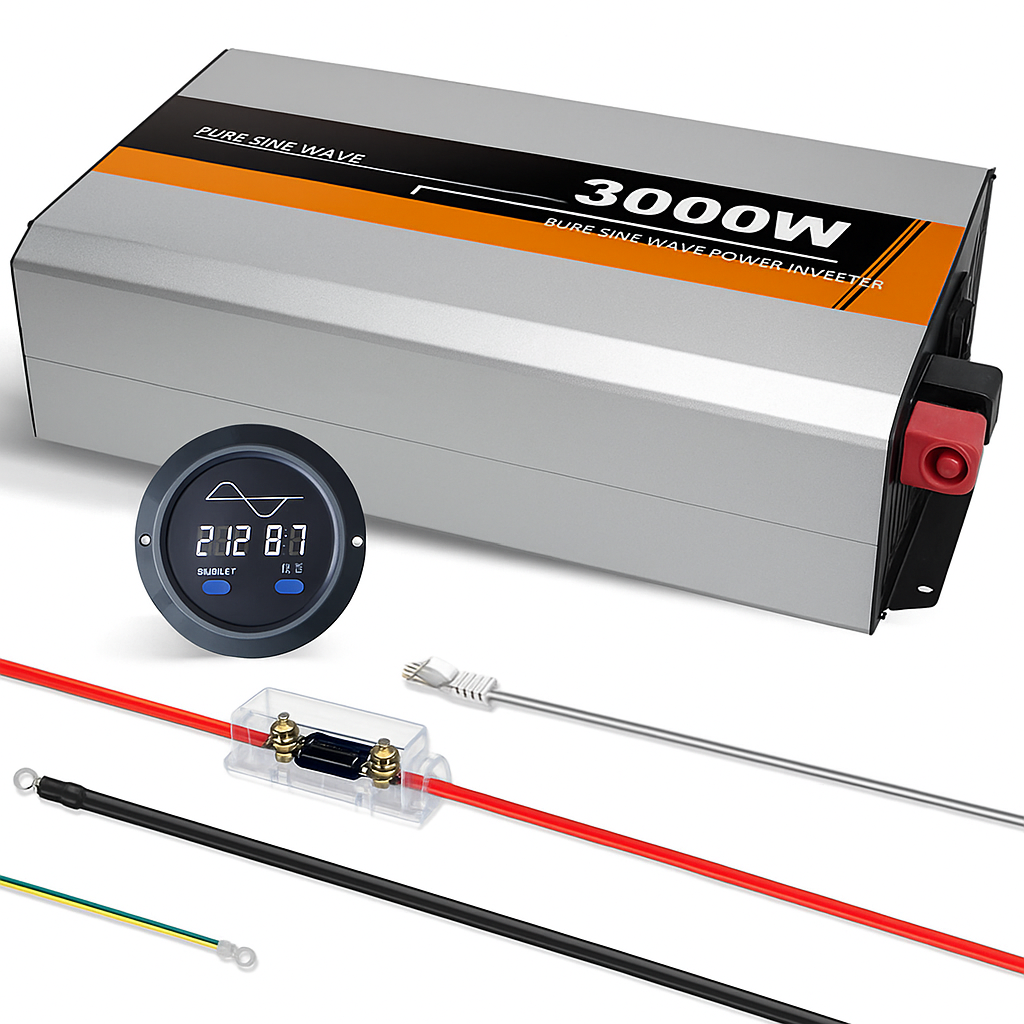

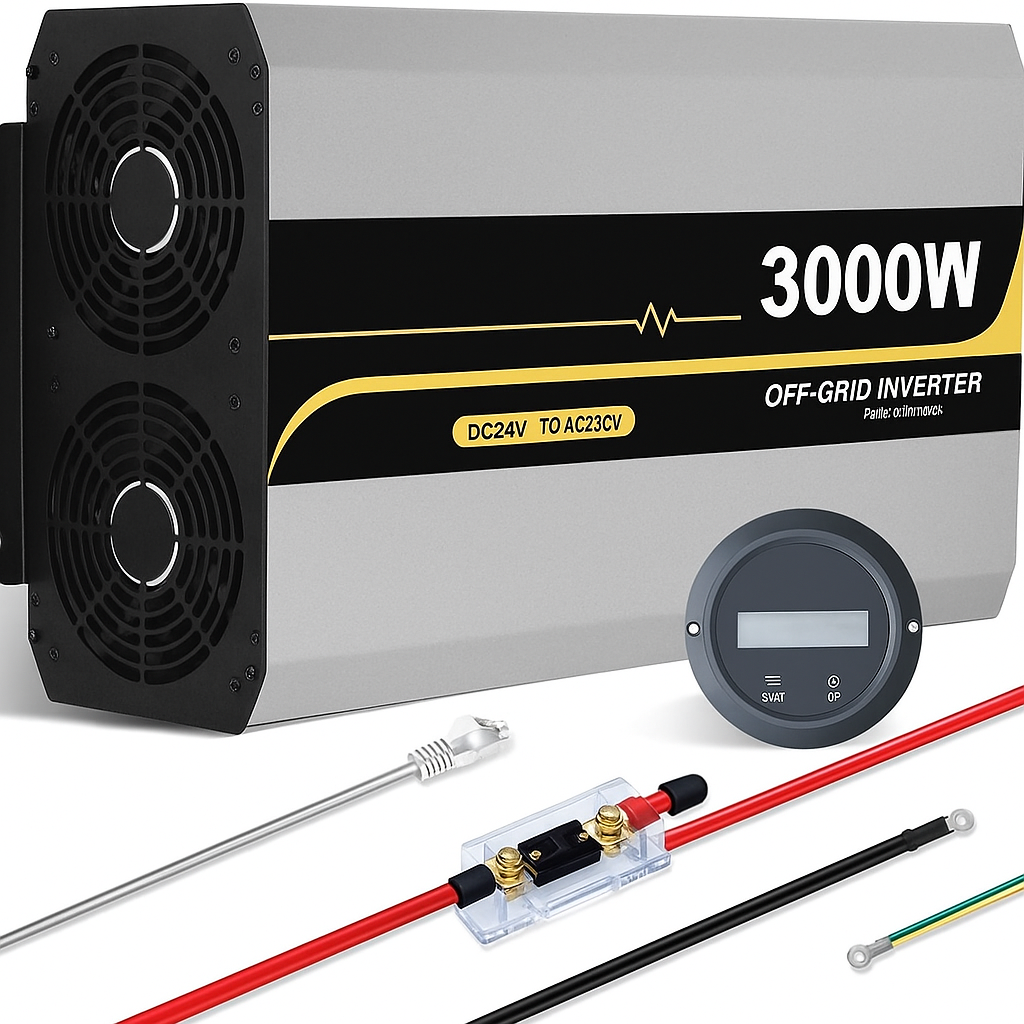

Fe Faith VoltMate™ 3000W 24V Sine Wave Inverter

Fe Faith VoltMate™ 3000W 24V Sine Wave Inverter
Power your off-grid system with the robust 3000W pure sine wave inverter, perfect for high-load appliances and sensitive electronics.

What It Does
The FE-FAITH 3000W 24V Pure Sine Wave Inverter efficiently converts 24V DC battery power into reliable 110V AC electricity, ideal for off-grid living or backup power. With its pure sine wave output, this inverter ensures safe operation for sensitive electronics such as medical devices, laptops, and appliances, as well as heavy-duty equipment like air conditioners and power tools. Designed for maximum durability and efficiency, it includes multiple safety features and a smart cooling system for long-term, reliable performance.

Key Features

• 3000W Continuous Power / 6000W Peak: Capable of running high-load devices such as air conditioners, power tools, and more.

• Pure Sine Wave Output: Delivers clean power, safe for electronics like laptops, TVs, and medical devices.

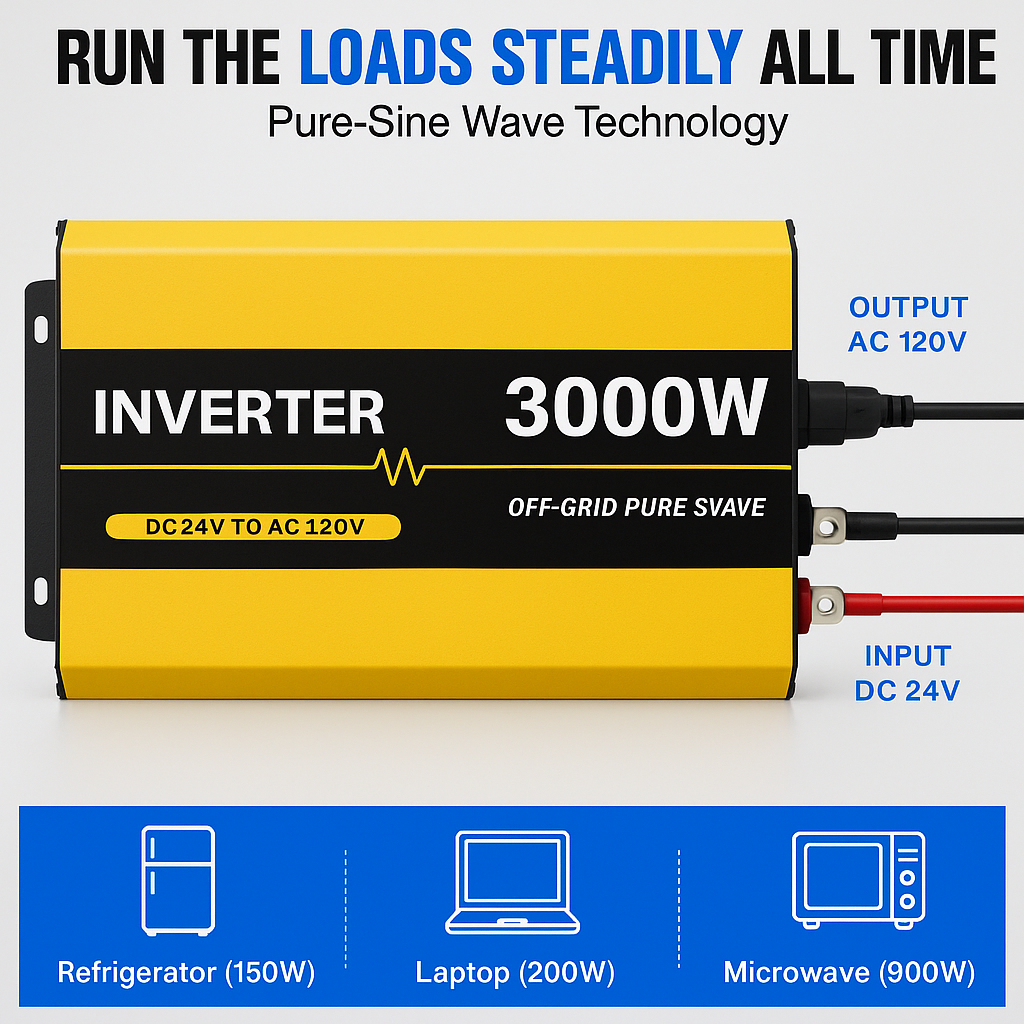

• Input Voltage: 24V DC → Output Voltage: 110V AC for your power needs.

• Dual AC Outlets + USB Charging Port: Charge multiple devices simultaneously with convenience.

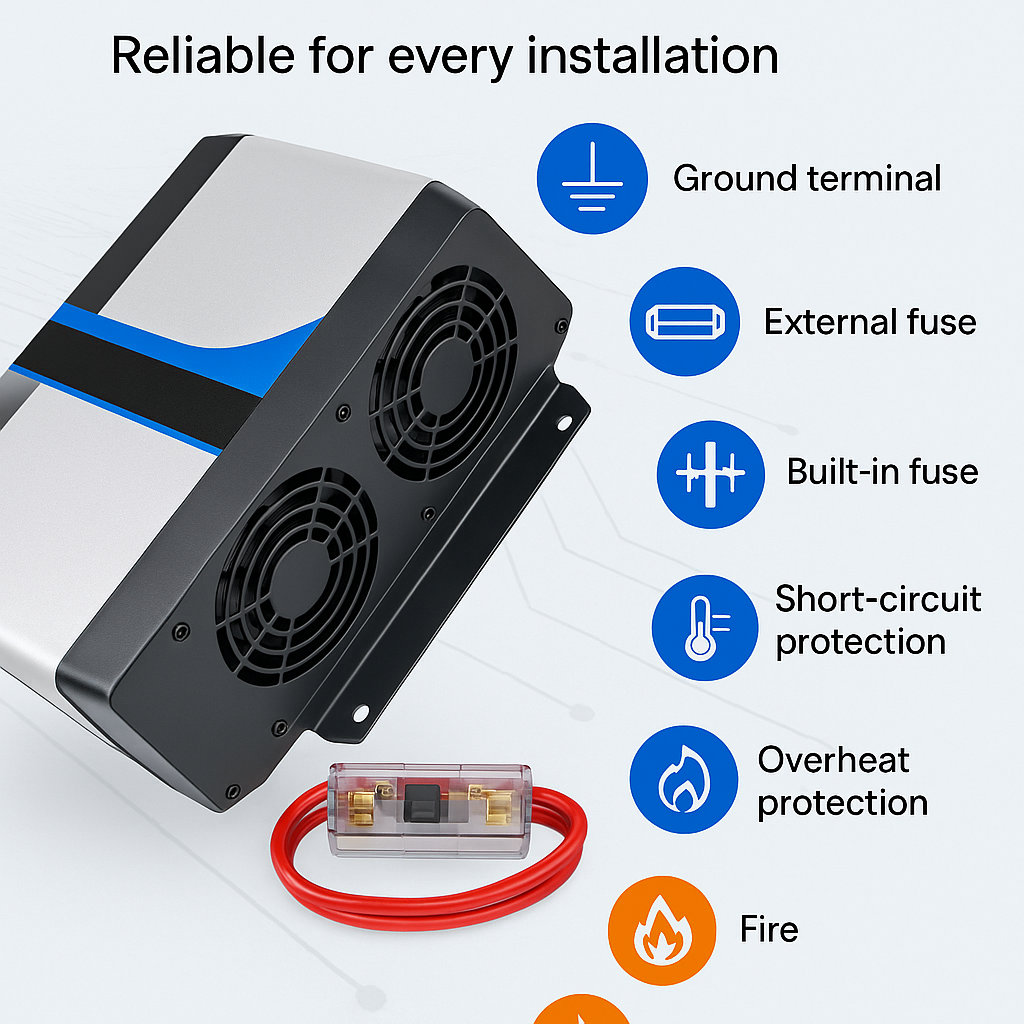

• Comprehensive Protection: Includes safeguards for overload, over-voltage, under-voltage, short circuit, and overheating.

• Intelligent Cooling System: Auto-adjusts fan speed for efficient cooling and heat management.

• Heavy-Duty Build: Rugged aluminum housing designed for durability and optimal cooling.

• Off-Grid Ready: Perfect for use with solar systems, RVs, boats, cabins, and backup power.

Specifications

• Continuous Output Power: 3000W

• Surge Power: 6000W

• Surge Current on Power-On: < 100A

• Output Voltage: 110VAC (±3%), 120VAC (-6% ~ +3%), 240VAC (-9% ~ +3%)

• Output Frequency: 50/60Hz ± 0.2%

• Output Waveform: Pure Sine Wave

• Output Distortion THD: THD ≤ 3% (Resistive Load)

• Rated Input Voltage: 24VDC

• Input Voltage Range: 21.6V ~ 32.0VDC

• Rated Output Efficiency: > 90%

• Max Output Efficiency: > 94% (at 30% loads)

• Idle Current: < 0.15A

• No-Load Current: < 1A

• Input Terminal: M6

• Dimensions: 521 × 270 × 143mm

• Mounting Size: 495 × 145mm

• Mounting Hole Size: Φ6mm

• Net Weight: 8.5kg

Applications
Ideal for solar systems, RVs, boats, remote cabins, and backup power, the Fe Faith VoltMate™ 3000W 24V Sine Wave Inverter powers a wide range of devices in off-grid setups, offering reliable energy where you need it most.
