Fe Faith AmpCore™ US10 Wall EV Charger – 9.6kW (40A)

Fe Faith AmpCore™ US10 Wall EV Charger – 9.6kW (40A)

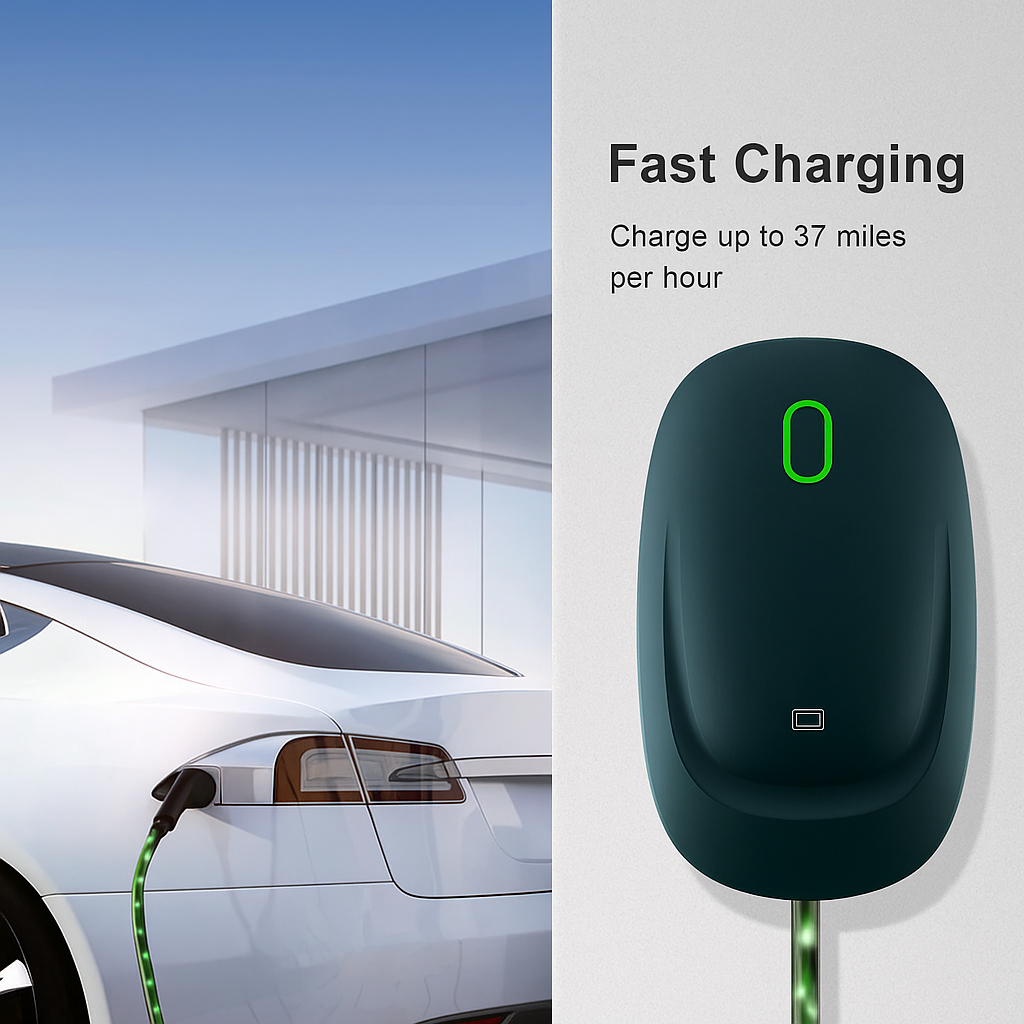

Fast Charging: The Wattsaving US10 EV charger charges up to 37MPH (60km/h). It provides fast charging capabilities for electric vehicles, allowing drivers to quickly charge their cars and get back on the road.

Versatility: The Wattsaving EV charger is equipped with a J1772 connector. It's compatible with a wide range of electric vehicles, including popular models such as Tesla, Nissan Leaf, Chevy Bolt, and more, making it a versatile solution for any EV owner.

Safety Features: The US10 level 2 charger is equipped with advanced safety features such as overload protection, over-voltage protection, and over-current protection to ensure that the charging process is safe and secure.

Sustainability: The Wattsaving home EV charger is designed with sustainability in mind, featuring energy-efficient components that reduce energy consumption and minimize environmental impact.

Easy Installation: Our EV charger is designed for easy installation, with a simple and intuitive interface that makes it easy to set up and use, even for those without technical knowledge. Additionally, it comes with all the necessary mounting hardware, cables, and instructions for hassle-free installation.

Key Features:

• Level 2 240 volt, 9.6kW (40A) home EV charger: Charge your EV faster than the portable charger that came with your vehicle.

• Equipped with a standard SAE J1772 connector: This Wattsaving US10 EV charger is compatible with all Electric Vehicles and Plug-in Hybrid Electric Vehicles sold in North America.

• 2 Charging Modes Available: Plug-and-Charge (default) and RFID card activate to charge.

• NEMA 4 Enclosure for Indoor/Outdoor Installation: We offer NEMA-6-50 or NEMA-14-50 plug options.

• Easy to Install and Use: Simple to remove from the mounting bracket and transport between different locations. Compact design for installation inside or outside with a long-reach 24.6ft (7.5m) cable.

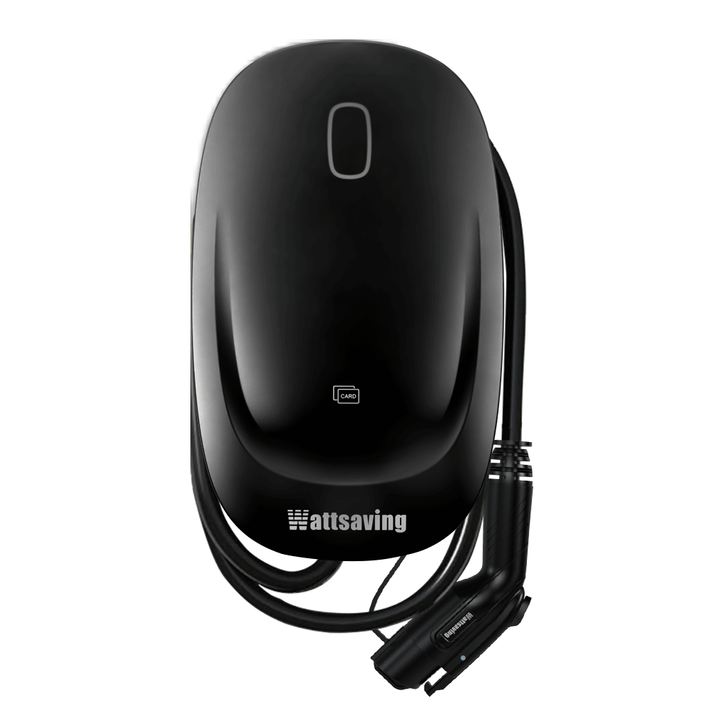

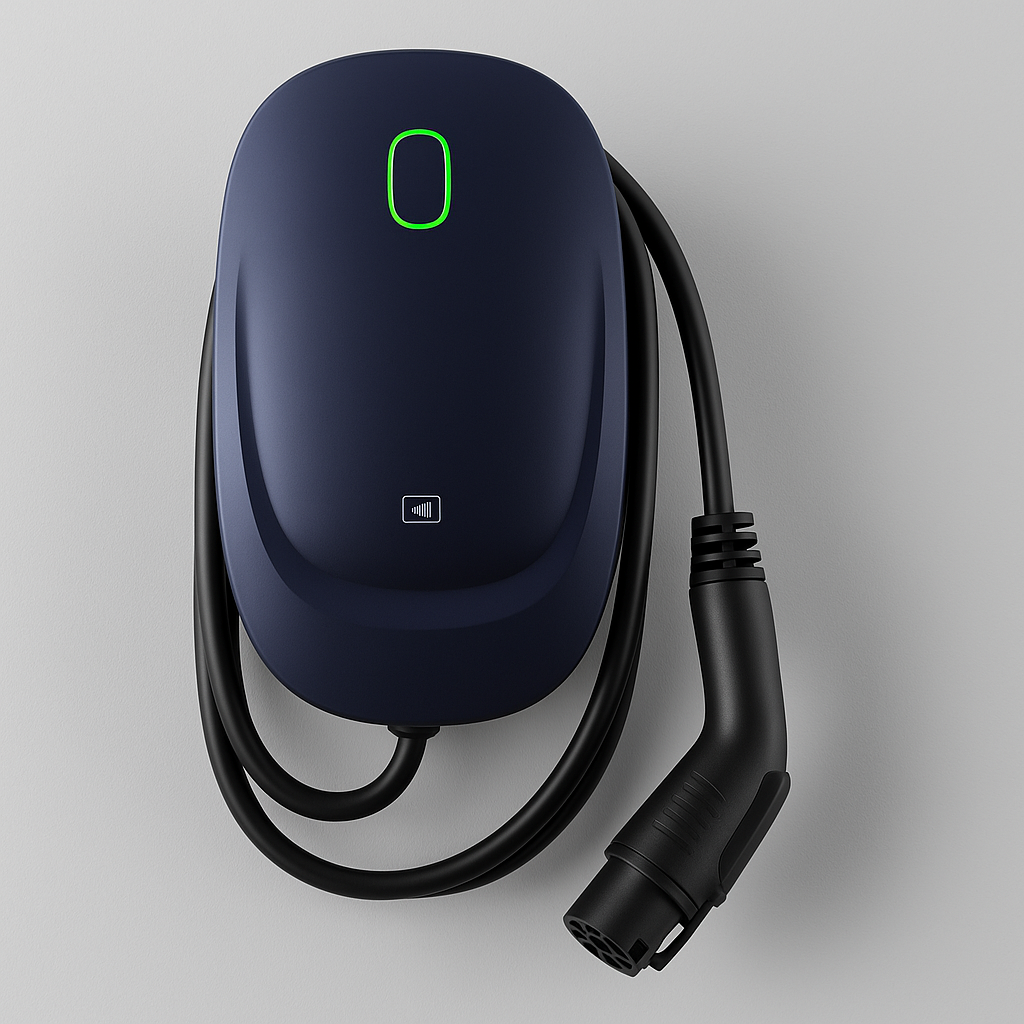

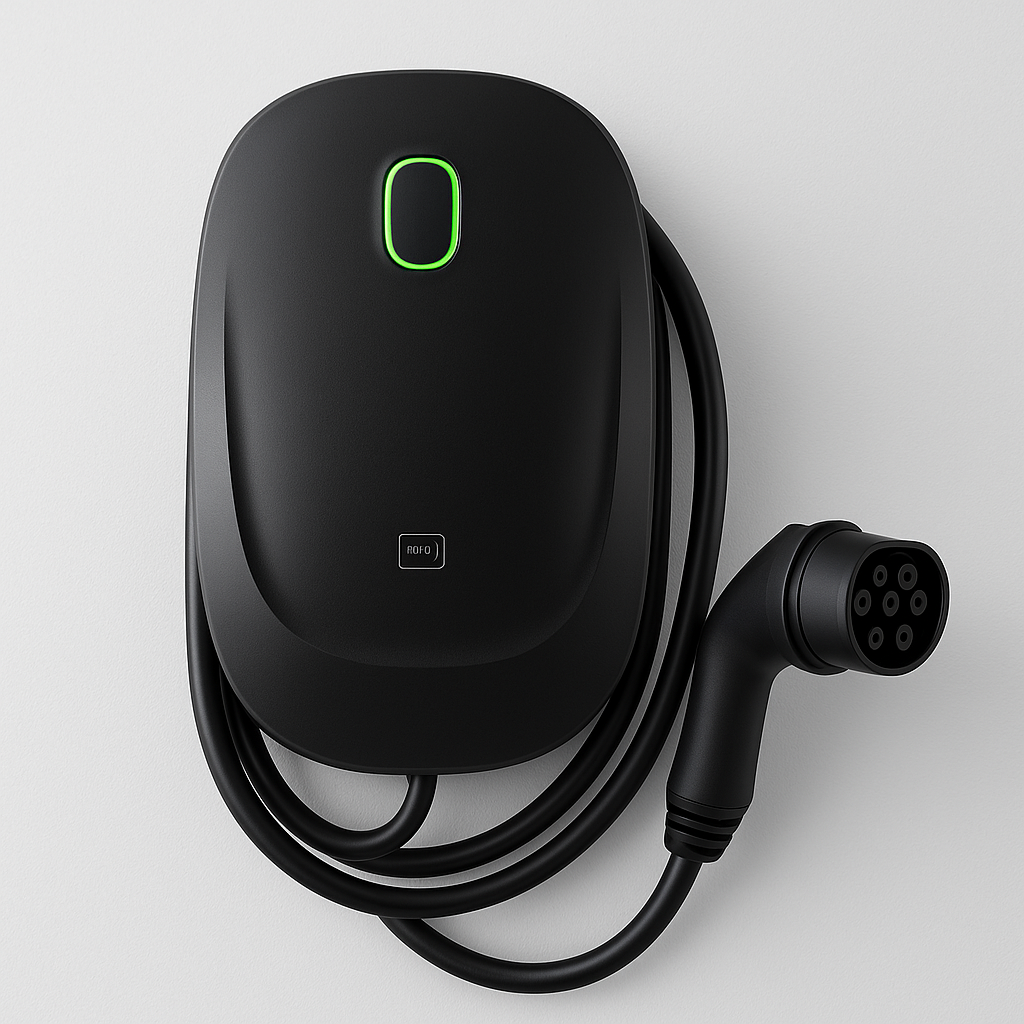

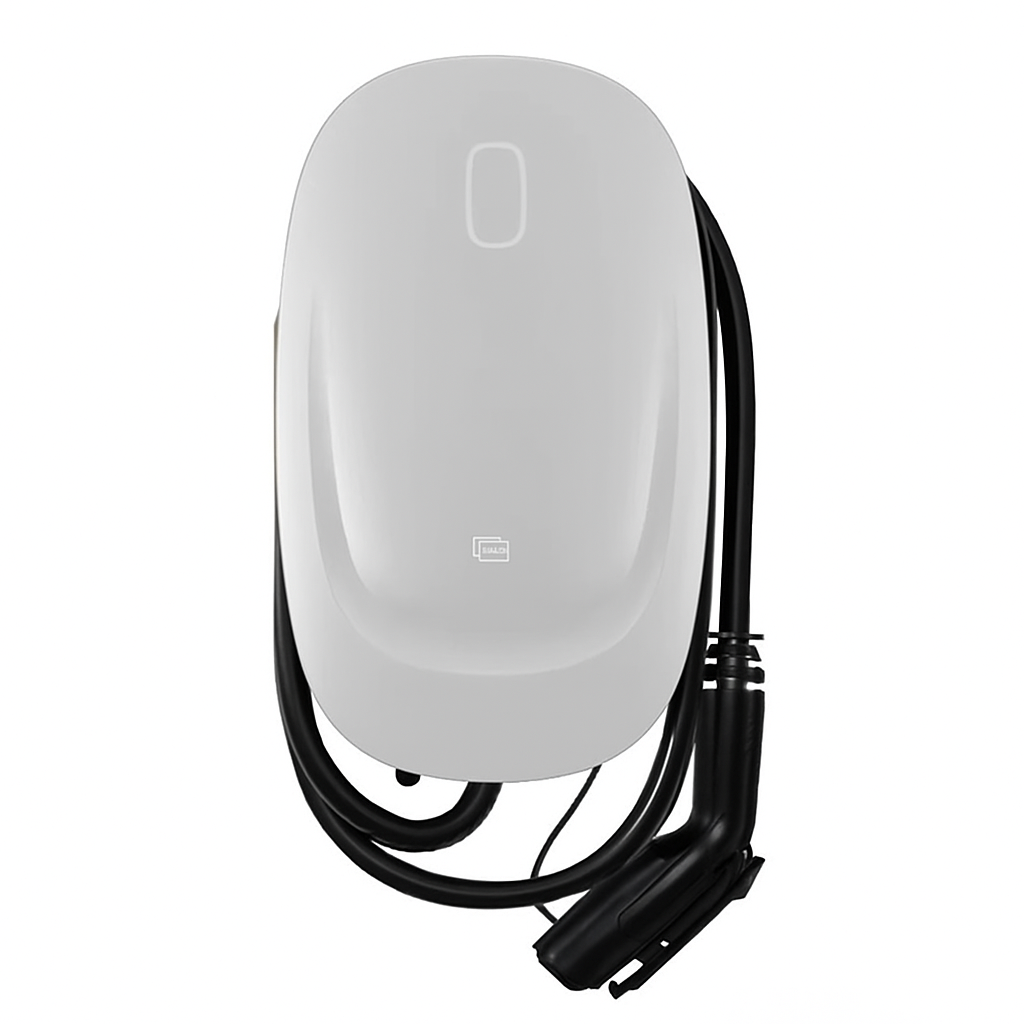

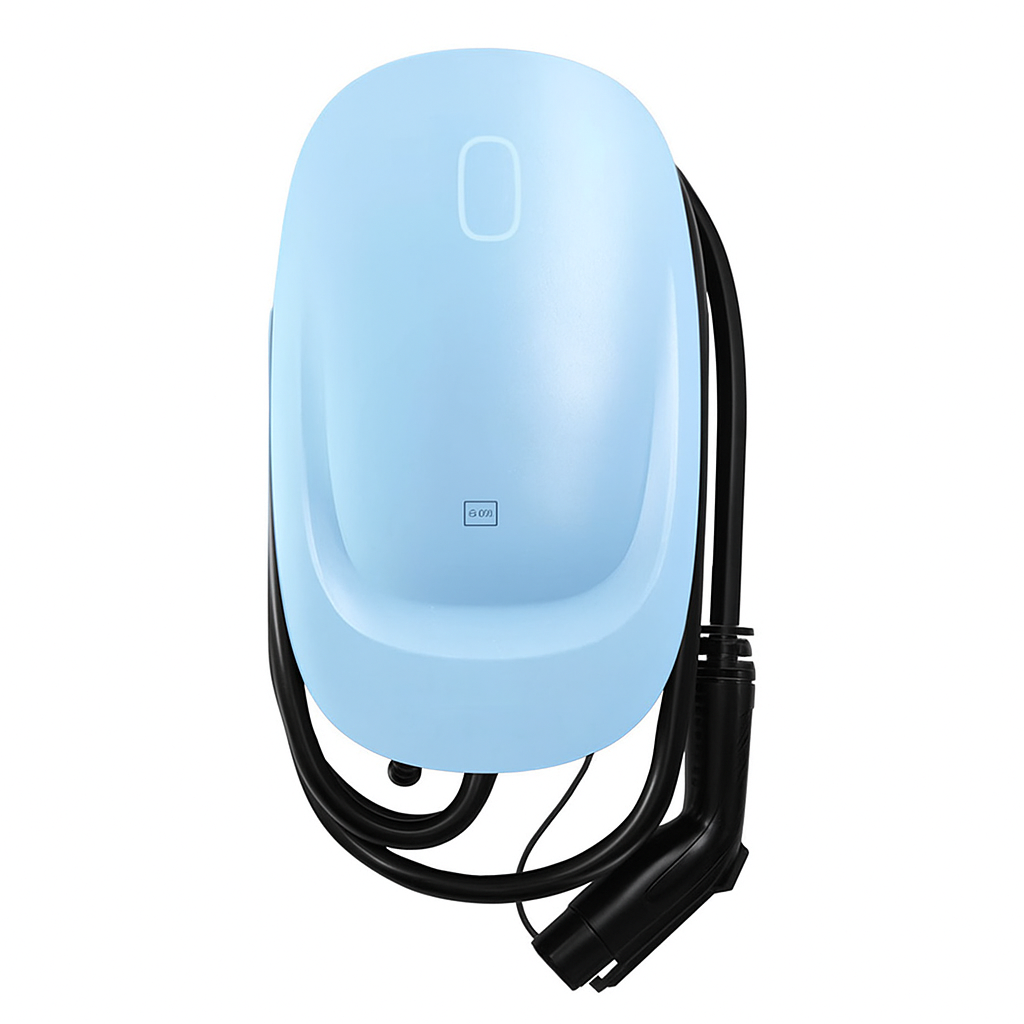

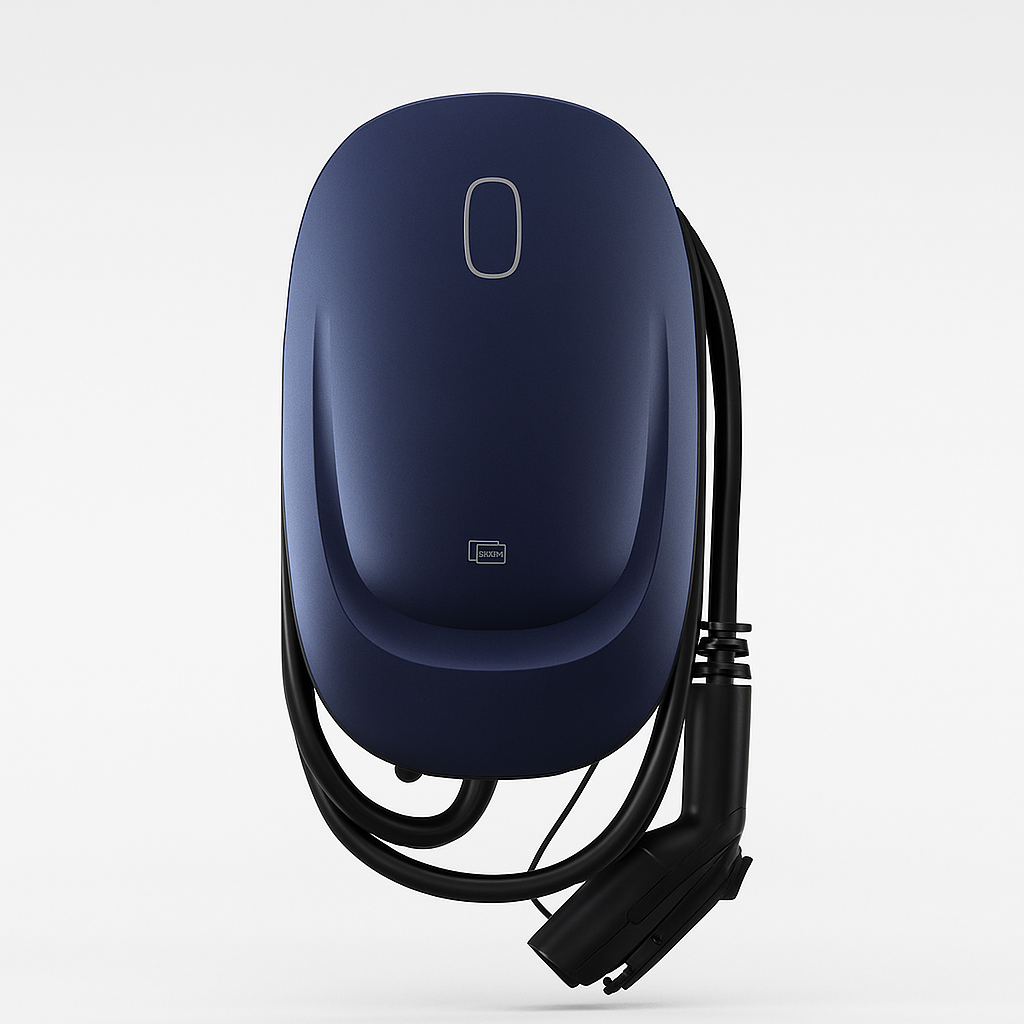

• 4 Color Options: White, Blue, Black, and Purple.

• Standard 2-Year Warranty: Learn more at warranty service.

Specifications:

• Model: Wattsaving US10

• Dimensions (H x W x D): 13" x 7.9" x 4.6" (331 x 201 x 116 mm)

• Weight: 14.6 lbs. (6.6 kg)

• Storage Temperature: -40 to 176 °F (-40 to 80 °C)

• Operating Temperature: -22 to 131 °F (-30 to 55 °C)

• Operating Humidity: 5% to 95%

• Mounting: Wall-mounted

• Enclosure Ratings: IP65 for indoor or outdoor installation

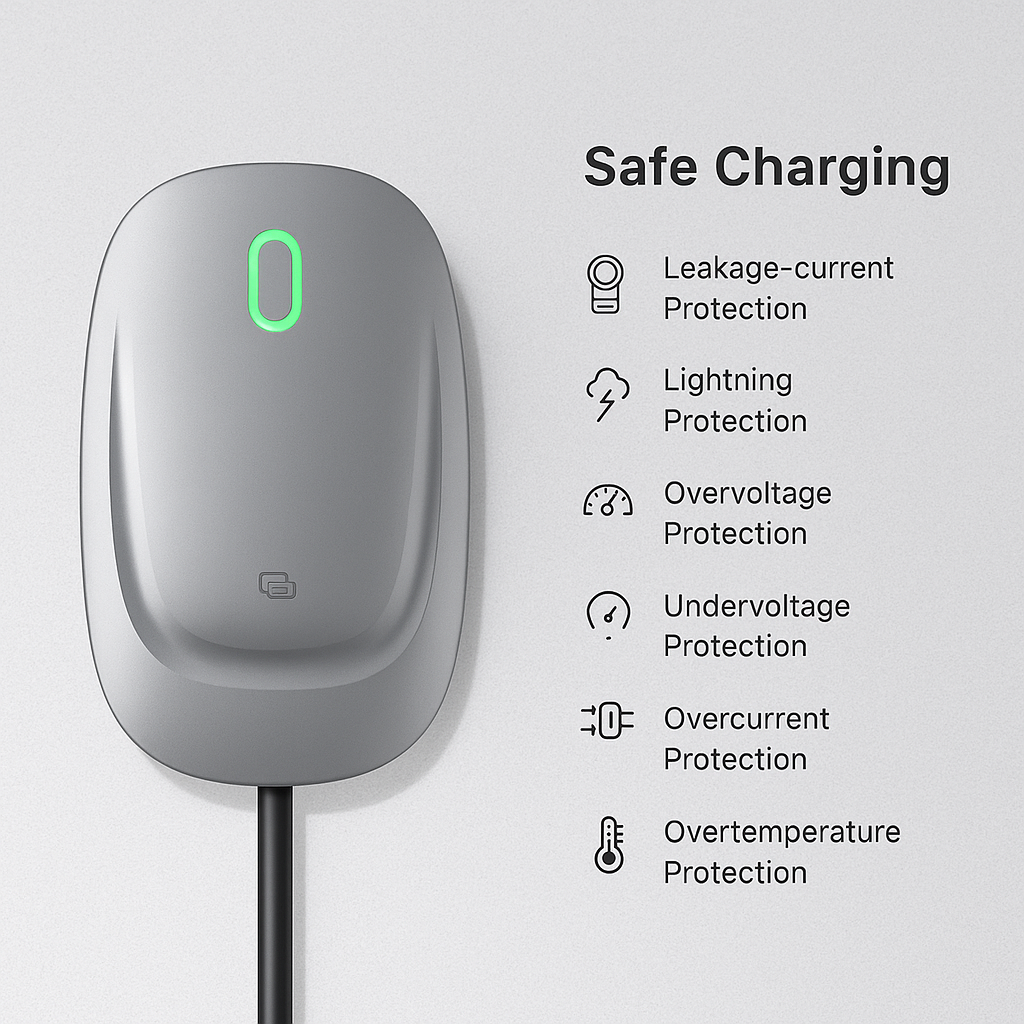

• Protection: Leakage current and ground fault protection, lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, overtemperature protection.

• Ground Fault Detection: CCID 20

• Warranty: 2 years

• Standards: UL2594, UL2231-1/-2

• Status Display: LED

• Charging Cable Length: 24.6 ft. (7.5m)

• Input Cord: NEMA 6-50 / NEMA 14-50

• AC Power Input Rating: 240±15% Va.c., 60 Hz, 40A (Max)

• AC Power Output Rating: Maximum 9.6 kW

• Connector Type: J1772

• Charging Mode: Plug-and-Charge / RFID Card

• Card Reader: RFID Activation

Package List:

• Wattsaving US10 EV Charger (with connector) x 1

• Connector Holster x 1

• Wall Dock x 1 / Pedestal x 1

• Wall Anchor x 7

• Type A Screw (M4 x 12 mm) x 1

• Type B Screw (M4 x 30 mm) x 7

• RFID Card x 2

• Product Quick Guide x 1

• User Manual x 1
